all weather system

All Weather System Siding

Wall Cladding

UltraShield@ wall cladding is the ultimate solution for exterior walls because it combines the toughness and longevity of a capped wood plastic composite with an engineered design. The shield gives the wall cladding unbeatable colors and textures, with highly stain & UV resistance, making it long lasting and ultra low maintenance.



Video

Benefits of Composite Wood Siding

We believe our UltraShield composite siding is the best choice for anyone wanting to upgrade their exterior wall cladding. Here are our reasons:

Our UltraShield Technology Provides Superior Protection

UltraShield technology offers many benefits and has revolutionized the composite board industry. NewTechWood became a pioneer in this technology back in 2010 when it set out to develop a deck board material that was more attractive, more durable and longer-lasting than any other composite decking material on the market.

After years of designing and testing, NewTechWood invented a product that surpassed all others in both performance and appearance. The strength, durability and beauty of UltraShield products can be explained by their composition, which consists of two main parts:

  • Co-extruded cap: The cap, which protects all sides of the board, is an impenetrable layer that can withstand staining, fading, scratching, cupping, swelling, mold and mildew. During the manufacturing process, NewTechWood uses high temperatures to fuse the core and shield together simultaneously. This means that no harmful adhesives or chemicals are released into the air.
  • Composite core: The core of UltraShield products is made by mixing high-quality recycled materials with dense hardwood and softwood fibers, which provides the product with impressive strength and durability. These products are all 100% recyclable.

This cutting-edge technology provides many benefits, including:

  • Fade resistance: The unique formulation of the shield guarantees that it will retain its vibrant, high-quality colors for much longer than regular composite decking products with poorer UV-resistance.
  • Splitting resistance: The impenetrable layer of the cap also prevents the surface from splitting, which increases the longevity of the product.
  • Stain resistance: If you spill something on your UltraShield composite siding – even wine, coffee or oil – it will not stain. Thanks to its protective shield, the boards will never absorb liquids, so you can easily clean up any mess.
  • Mold resistance: The shield also offers protection from mold and mildew, both of which are known to eat away at wooden boards.
  • Fire resistance: Unlike traditional wooden boards, UltraShield composite cladding is fire-resistant.
  • Pest resistance: Many insects, including termites, carpenter ants and carpenter bees, like to burrow into wood siding, which can be disastrous. Luckily, Ultrashield also protects against these invaders.
  • Low maintenance: Your shield contains multi-chromatic colors, so you won’t ever have to sand, oil or paint it.

While our composite cladding is similar in composition to our decking and other Ultrashield products, our cladding is not just deck boards turned sideways — they feature a water seal that was specifically designed to prolong the longevity of your building.

Our Green Manufacturing Techniques

If you’re a homeowner, you must consider the environmental impact that your installation will have. Since you’re concerned about environmental sustainability, you’ll be glad to know that we’re committed to making our products with the most eco-friendly production methods available. And we’re not just following recent trends — our company went green long before it was fashionable.

At NewTechWood, we follow the three main pillars of green living — environmental protection, social development and economic development. Our production methods reflect this philosophy, which include:

  • Recycled materials: Our products consist of 95% recycled materials, including plastic bottles and reclaimed wood fibers. Our parent company has been dedicated to this practice for almost three decades. By doing this, every month we save over 12 million pounds of plastic from going into a landfill. And we don’t recycle just any material — we have control over the entire recycling process and select only the highest-quality materials, so we always know exactly what goes into our products.

  • Adherence to regulations: We have third-party organizations perform yearly audits to make sure we comply with safety, environmental and health regulations.

  • Reduced carbon emissions: We are committed to reducing our carbon footprint by minimizing our waste, conserving energy and making use of the most efficient production processes.

By choosing NewTechWood products, which are made from recycled materials by a company committed to eco-friendly practices, you are taking part in this green initiative. The resources you’ll be using will help the environment instead of harming it.

Ideal for Smart Homes

If you have or are planning to buy a smart home, NewTechWood’s UltraShield siding is a great choice.

A smart home can be defined as a house that provides comfort, security, convenience and energy efficiency by using sophisticated technology and materials. Its benefits generally include:

  • Green energy: Smart homes tend to be wind- or solar-powered and use the shade of trees to reduce cooling costs. Their windows, doors and siding are also placed in a way that helps the inside stay comfortable regardless of the weather outside.
  • Automated lighting: Smart homes generally have lights that turn on and off automatically as you enter or leave a room.
  • Radiant heating: This type of heating warms homes by heating mass instead of air, which is a cost-effective way to stay comfortable when the weather is exceptionally cold or hot.
  • Geothermal heating: With this type of heating, deep core thermal systems get energy from the earth to provide cooling and heating to homes.

Although smart homes have higher upfront prices, these costs can be quickly recovered through cheaper energy bills. However, for smart homes to use less energy, they must be equipped with high-quality siding. It won’t make sense to spend extra on energy-efficient cooling and heating if the heated or cooled air can escape easily through your walls.

Choice of Styles

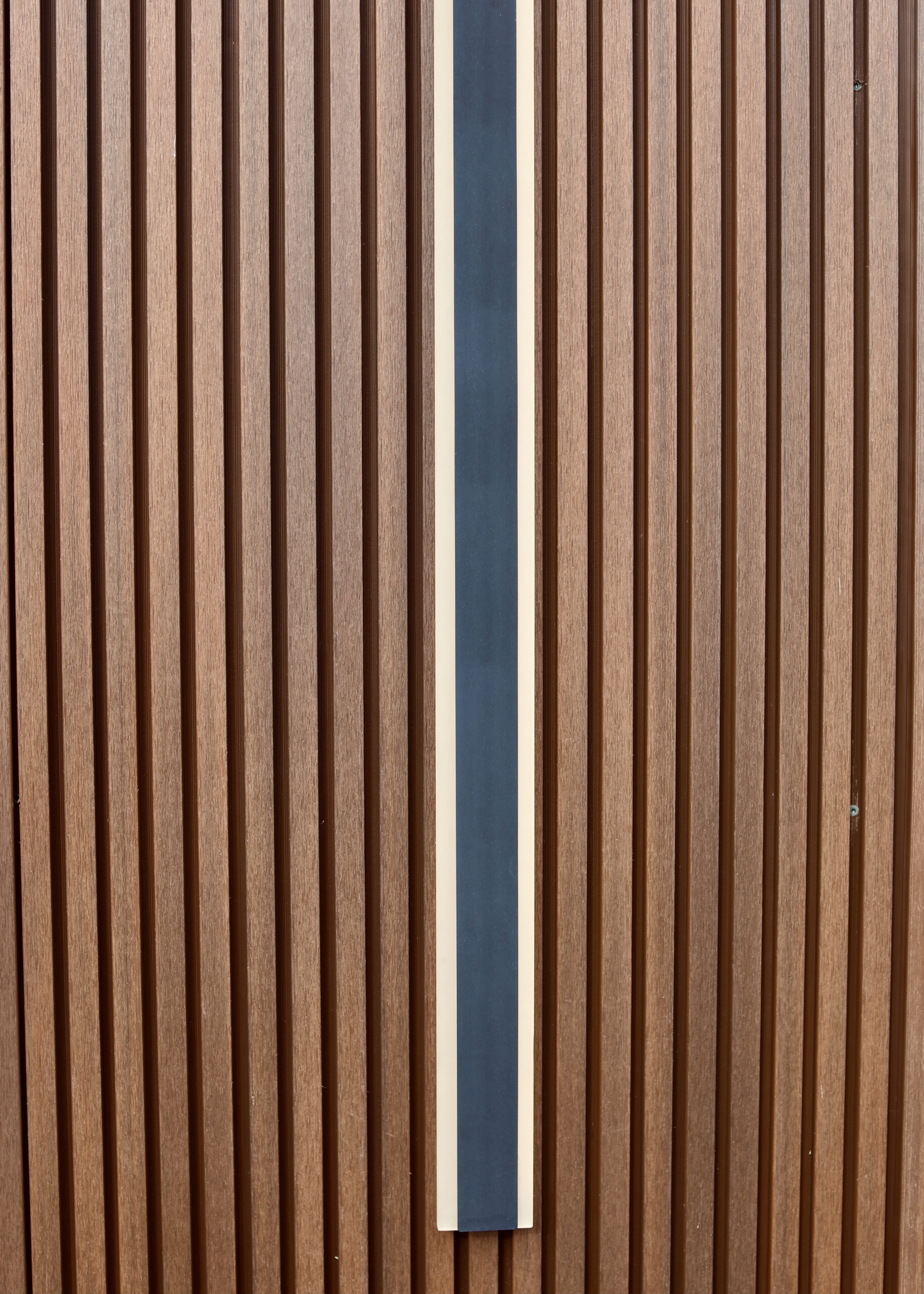

At NewTechWood, you can choose between two styles of composite siding — the All-Weather System and the European-style.

The All-Weather system features 5.5″-wide boards while the European boards are 4.8″ wide with three raised sections to give it an especially narrow appearance.



PROFILE

Composite Cladding

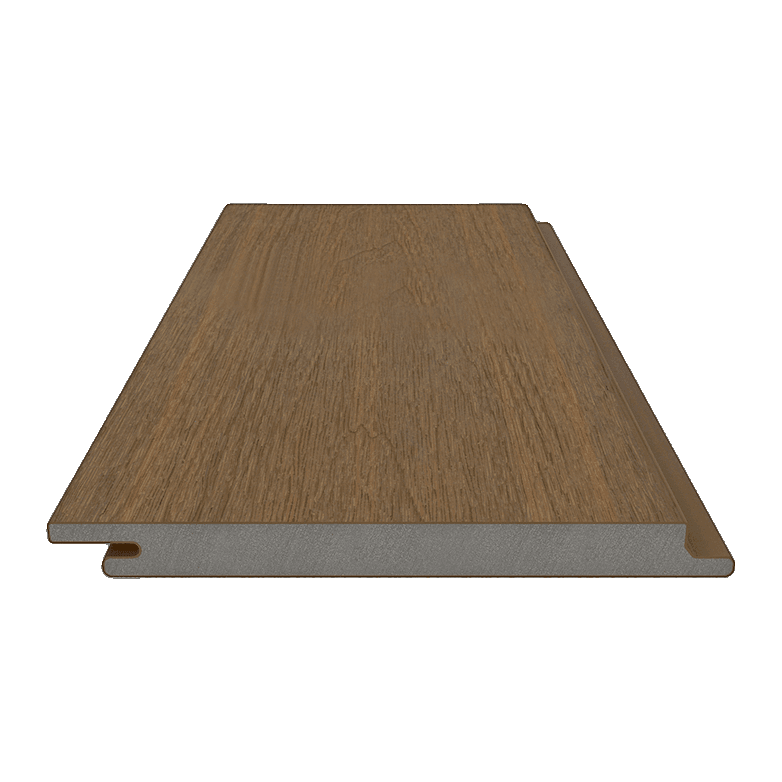

  • Tongue & Groove US09
  • 5.5 x 0.5 in
    (142 x 13 mm)

    composite siding

NewTechWood US09 tongue and groove siding can be installed both horizontally and vertically. For detailed instructions, review the information in the Installation section





Fascia

Wood Cladding composite wood siding
  • End Fascia US44
  • 1.8 x 1.7 in
    (46.2 x 44.2 mm)
  • Joint Fascia US45
  • 3.1 x 1.0 in
    (79 x 26.7 mm)
  • Outer Corner US46
  • 2.2 x 2.2 in
    (58.2 x 58.2 mm)



  • Inner Corner US47
    • 2.8 x 2.8 in
      (71.5 x 71.5 mm)



  • L-Shaped fascia US20
    • 1.5 x 1.5 in
      (38.1 x 38.1 mm)





Matching Accessories

  • AW08

Material: Aluminum
Size: 0.78 x 0.59 x 1.10 in (20 x 15 x 28 mm)

Installed on the joists and used as the connection between each US09 board.

  • T-7

Material: Rubber
Size: 0.70 x 0.31 in (18 x 8 mm)

Installed on the joists to support the US09 when installing the last board.

  • AW02

Material: Aluminum
Size: 0.59 x 0.57 in (15 x 14.5 mm)

Designed to fix the first cladding on the joist.



Cladding Clips

Our wall cladding is held together with our AW-08 cladding clips, which serve an important additional function — they keep the siding separate from the joists that support it, allowing air to circulate between the cladding and the joists. This keeps the interior area dry by isolating water from the outside. Our cladding clips also allow the boards to expand and contract with the temperature and, simply by securing a clip with a screw, it can serve as a locking clip, which lets you control the direction in which you’d like the board to contract and expand.



Manu-Spec and Spec-Data

Download icon

Manu-Spec is a proprietary 3-part specification. Our composite siding critical technical information are included.
It utilizes the Construction Specifications Institute (CSI) Project Resource Manual (PRM), including MasterFormat?, SectionFormat? and PageFormat?.

Download icon

Download

Spec-Data is a ConstructConnect-exclusive 10 – part specification that provides product information in layman’s terms. No fluff. No boasts. Just the facts.
Using the prescribed CSI standards, Spec-Data pulls together all details an architect needs to evaluate, select and specify the products.

Download icon

Download

CMD SpecResources

It’s easy to get confused by all your options when it comes to external cladding for your home, and NewTechWood is here to help. No question is too insignificant or too minor when it comes to the appearance of your home. Composite wood cladding for your home siding is a meaningful investment, and we want to make sure you get exactly what you want. If you have any questions about vertical composite cladding, horizontal composite cladding or anything else related to home siding, please call us now, toll-free at 866-728-5273.



TECHNICAL

Download icon

All Weather Siding Technical Sheet

Download
Download icon

NEWTECHWOOD US09 SIDING MIAMI-DADE COUNTY NOTICE OF ACCEPTANCE

Download
Download icon

All Weather System Siding Installation Guide

Download


INSTALLATION

Ultrashield Naturale Composite Siding Installation Guide

NewTechWood Siding Vertical Installation Guide

NewTechWood All Weather Siding Soffit

Step 1



Install Aluminum or Wooden Joists

*Note: Install an aluminum or a wooden joist at the bottom to prevent insects from crawling up.

Composite Cladding

Step 2



Install End Fascia US44, Joist Fascia US45, Outer Corner Fascia US46, Inner Corner Fascia US47

Composite Cladding



*Note: The distance of 500 mm between screws for US44,US45,US46 and US47 is recommended.

Wood Cladding

Step 3



Install Start Clip AW02

composite siding

Step 4



Install Wall Cladding Boards (US09)

composite wood siding

Step 5



    • Australian Red Cedar

Installing Wall Cladding Clip AW08

composite exterior siding panels

Step 6



Continue Installing Wall Cladding Boards

composite exterior cladding

Step 7



Install Gaskets at the Top of the Joists

composite cladding boards

exterior wood cladding

Composite Siding Installation

To install UltraShield composite cladding, you will need to gather some tools, research some topics and perform a few tasks. These include:

    • Familiarizing yourself with local building codes: Before you start installing the cladding, we advise that you research the building codes in your area and find out whether there are any requirements or restrictions for siding.

    • Making safety a priority: When handling, cutting or installing our products, make sure to wear appropriate safety gear to minimize the risk of injury. The safety gear that we recommended includes — although is not limited to — pants, gloves, long sleeves, safety glasses and respiratory protection.

    • Using suitable tools: Standard woodworking tools are appropriate for this installation, although when cutting, we recommend that you use blades that are carbide-tipped. We also suggest that you use stainless steel screws or properly coated deck screws to achieve the best-looking results.

    • Storing the products on a flat surface: If you need to store our product before beginning your installation, you must do so on a smooth, flat surface. Under no circumstances should you place the product on a surface that isn’t flat.

    • Drawing up a site plan: To make sure the cladding you have is the best option for your application, plan your layout. Generally speaking, building codes and zoning regulations are applicable to all permanent structures, which are considered to be anything fixed to the ground or attached to your home. This means that practically every siding type will need to be inspected by your area’s building department. We recommended that you make a site plan and submit it to your local building department before you begin your installation.

    • Using the siding as it was intended: Our UltraShield siding was not meant to bear loads, which means you cannot use it for beams, columns, support posts, joist stringers or any other component that supports the weight. You can only use a code-compliant structure to support a NewTechWood product. Although our products work superbly with retrofits, you cannot install it over existing siding.

    • Minimizing static: In higher-elevation areas, where humidity tends to be lower, static is more common. If your home is at a high altitude, avoid using metal railings, chairs or other conductive objects near the siding — this may increase the chance of shocks. One method for reducing static is to lay down an anti-static mat by the doorway.

    • Allowing for ventilation: The composite siding cannot be installed directly on a flat surface. Instead, it must be attached to a substructure that will allow for completely unobstructed airflow, which will help prevent the absorption of water. You must leave at least an inch of free area under the siding’s surface so air can properly circulate.

    • Being aware of Low-E glass and its effects: Energy-efficient windows that have low-emissivity (Low-E) glass are meant to reflect incoming sunlight, which may lead to excessive buildup of heat on the surface of NewTechWood’s siding products. Low-E windows are designed to reduce the heat gain in buildings and houses and can cause an undesirable amount of built-up heat on exterior walls. This heat can lead to sagging, melting, warping, accelerated weathering and discoloring of our products. If your windows contain Low-E glass and you’re planning to install our composite cladding, talk with your window manufacturer to see if there’s any way to minimize the damaging effects of reflected sunlight.

    • Installing your fasteners at a right angle: When fastening products from NewTechWood, the face-fastened screws should be driven at exactly 90 degrees to the siding’s surface. Our products should never be toe-nailed. If you can’t manage to drive the screw in at an exact 90-degree angle, you will need to add an extra joist. All fasteners should be on independent joists, and on joists where the ends of two boards meet, a sister joist must be added. The end of every board must have a joist of its own.

    • Using white chalk lines only: Using a chalk color other than white will lead to our products being stained permanently, so we strongly encourage you to avoid them.

  • Using screws and nails made of stainless steel: Our siding products were meant to be used only with stainless steel nails and screws. With certain screw types, bulging or mushrooming may occur when face-fixing them. To avoid these undesirable blemishes, we advise that you use a rubber mallet to pat them down. When shopping for your nails or screws, ask local home centers and hardware stores if they have screws that are specifically meant to be used with composite wood. They are guaranteed to be compatible with our siding products and will lead to an attractive final product. If you use nails or screws that aren’t recommended for composite siding, they may actually do damage. If you’re unsure about which nail or screw type to use, feel free to contact us for advice.

As mentioned above, your composite cladding cannot simply be installed on a flat surface. You must install it on joists to allow for proper ventilation. This structure is known as the “under construction.” Before installing this structure, keep these tips in mind:

  • Build with appropriate materials: We recommended using aluminum joists or pressure-treated wood for your under construction.
  • Space the joists correctly: They should be no farther apart than 1.64′ on center.
  • Add a vapor barrier and insulation: Your vapor barrier needs to be breathable and installed behind your joists, which will allow air to flow properly.

Before you install the under construction, we recommend you speak with a licensed professional.

Our Warranty

We have so much confidence in the quality and longevity of our products that we offer them with a transferable limited warranty of 25 years. We will even cover the labor costs involved in replacing the materials if their performance is less than promised.

Values for Contraction and Expansion

Warmer temperatures will cause your siding boards to expand, and cold temperatures will cause them to contract. For this reason, it is necessary to leave a gap between boards during your installation — and you must know how much of a gap to leave. For instance, if you’re installing an 8′ board when it’s just 32 F, you must leave a 2/16″ gap. If it’s 68 F, you only have to leave a 1/16″ gap. You can?see the full chart?in our siding installation manual.



Enhance the Beauty and Lifespan of Your Structure With NewTechWood’s Composite Wood Siding

NewTechWood has been a dominant force in the composite wood industry ever since its beginnings 15 years ago. It has become known around the world for its advanced, attractive and reliable composite wood products.

At NewTechWood, we attribute our success to our philosophy — we are committed to listening closely to homeowners, homebuilders, architects and contractors and work hard to carry out their requests and bring their visions to life. We believe our ability to realize our customers’ needs is in part due to our products’ wide range of colors and patterns, which allows us to find a look that works perfectly for every project.

Apart from our siding, we also offer a number of other composite wood products that can enhance your outdoor living experience, such as:

  • Composite deck boards: NewTechWood’s composite deck boards are also manufactured using recycled materials and are excellent for both houses and commercial buildings. They’re available in a vast array of patterns and colors and are exceptionally durable, meaning you’ll get to enjoy this product for many years.
  • Composite deck tiles: Our composite deck tiles are 100% eco-friendly and are made with natural wood grains. Installing these tiles is easy — all you need to do is snap them together. There are four ways these tiles can interlock, which means that you can position them in whichever orientation you want. These tiles have a grid attached to the underside, which keeps them off the surface below and allows for drainage. These deck tiles are an excellent choice for those who would prefer to tackle an easy DIY project to paying for a professional to spend several days building a deck. This product is available in several colors and trim options.
  • Deck railings: NewTechWood’s composite railing is modern-looking and sleek, which is in part thanks to the composite and aluminum of which it’s made. Just like our other products, the railings feature UltraShield technology, meaning that virtually no maintenance is required and it will look fantastic for many years to come. Our railings were designed to perfectly match our decking, meaning that your railing and decking, when installed properly, will look like a single, seamless piece.
  • Planter boxes:Our planter boxes, which are also made from recycled materials, are easy to assemble. To put one together, you won’t need any tools or fasteners, so anyone in your family can lend a hand. They’re also stackable and can be used in a variety of ways — you can fill one up with sand and turn it into a sandbox or fill it up with soil and grow plants or flowers.
  • Bird feeders: By setting up one of our attractive bird feeders, you can turn your backyard into an inviting retreat for your avian visitors. Our feeders come in four different types — a composite birdhouse feeder with a door and window for privacy, a composite squirrel feeder, a composite suet feeder and a composite bird feeder that provides room for several birds to enjoy a meal together.

If you’d like to learn more about our products, we’d be happy to speak with you! You can reach us by calling 281-570-6450 or by filling out our online form. If you’re ready to install one of our products, you can locate a nearby distributor that sells our products.
