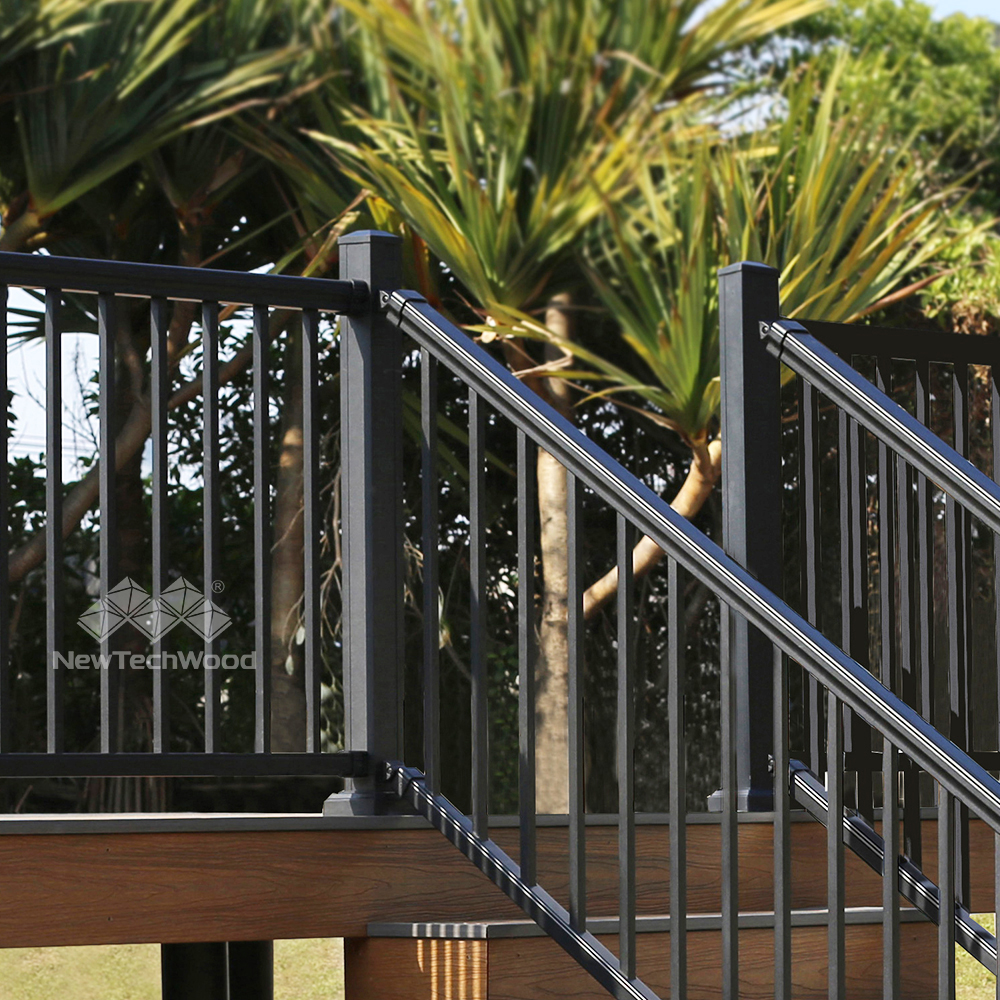

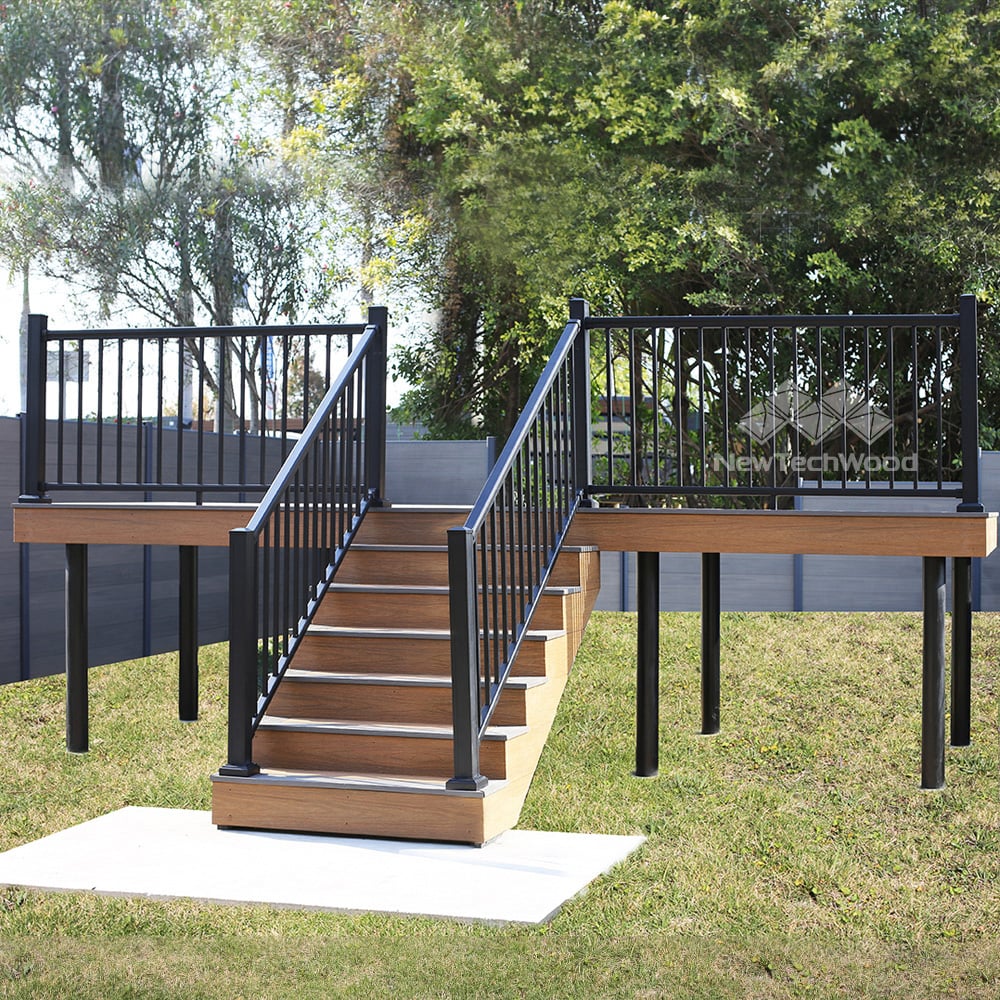

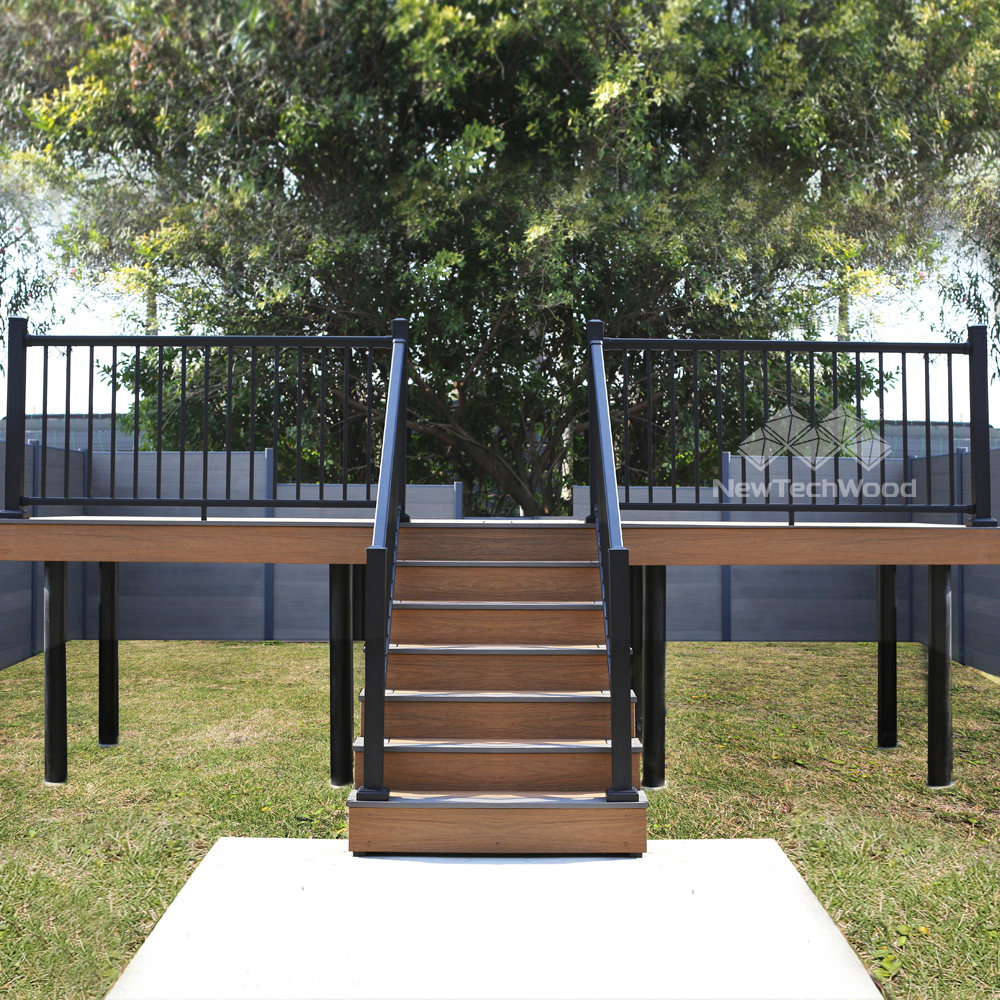

Aluminum Railing

Straight Railing

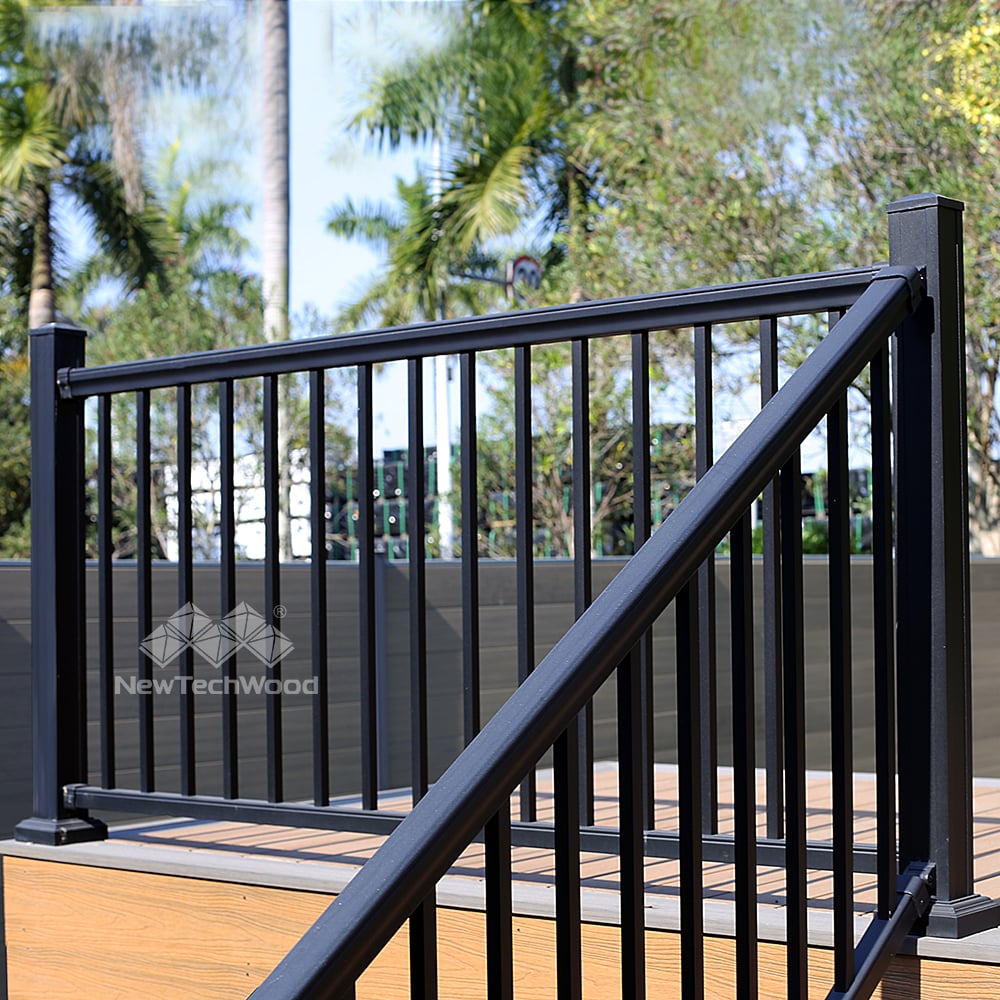

Stair Railing

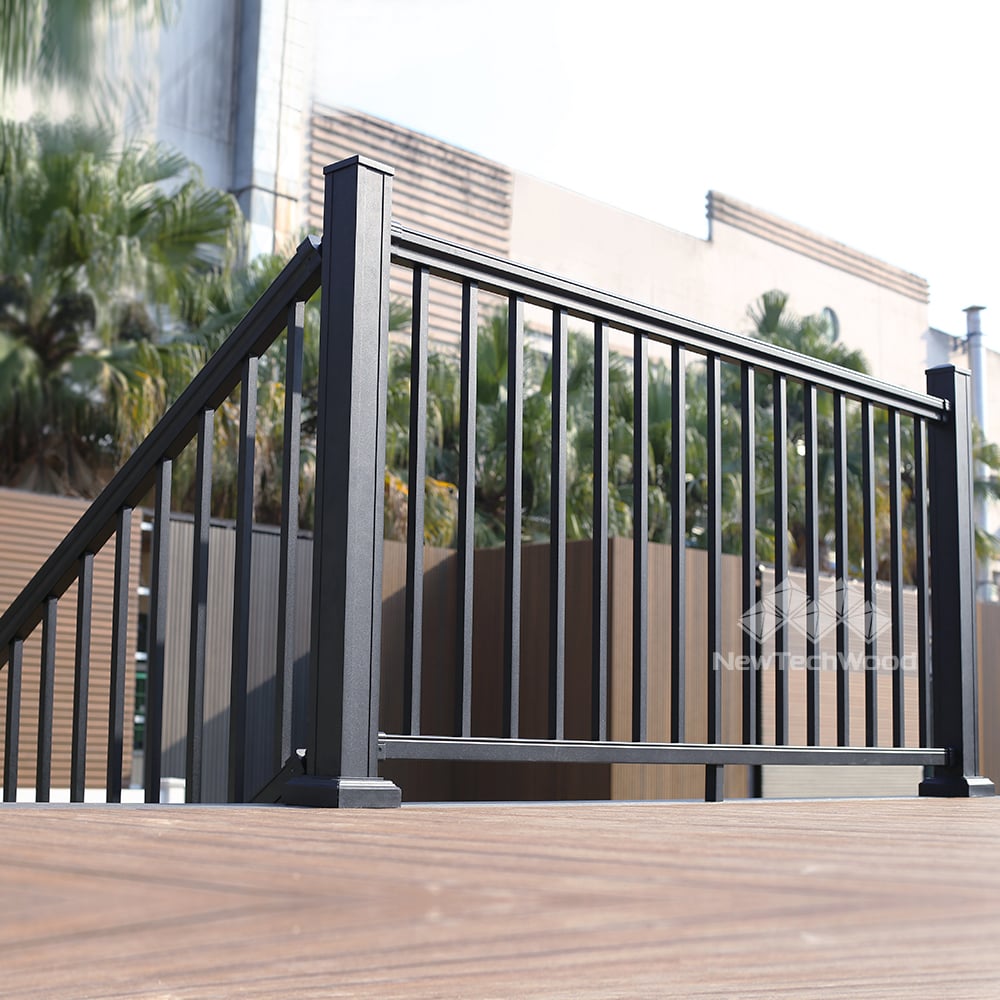

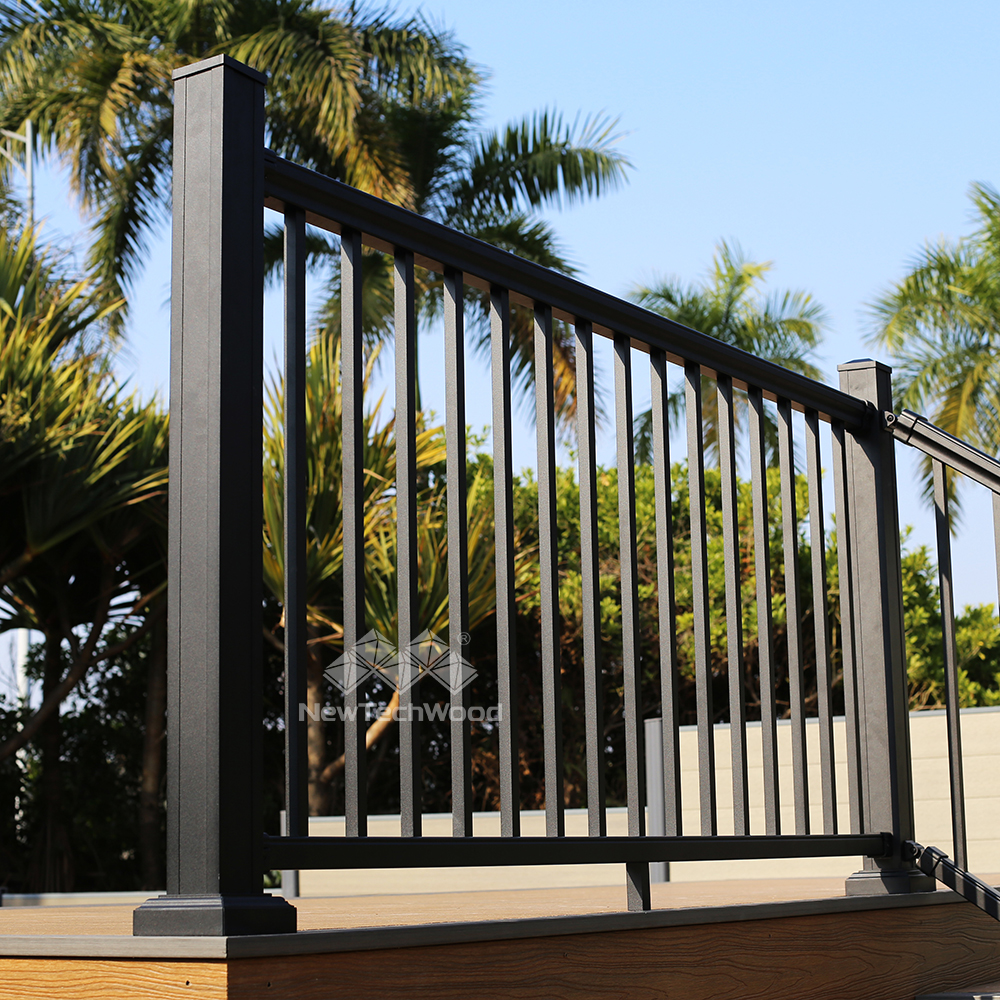

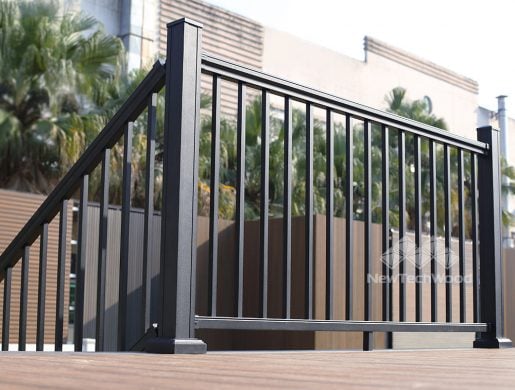

72″ Width Railing System W/ Square Balusters
36x72-Installation-Measurement-Guide
Dimension:
36″ * 72″
42″ * 72″
36″ * 96″
42″ * 96″

How to make the railing installation more simple and quick.

Watch The Video

Installation

TOOLS & MATERIALS NEEDED

TOOLS:

MATERIALS:

  • Hacksaw or metal cutting saw
  • Drill
  • 1/8″(3mm),3/16″(4mm) Drill bit
  • Screwdrivers
  • Measuring tape
  • Hacksaw or metal cutting saw
  • Drill
  • 1/8″(3mm),3/16″(4mm) Drill bit
  • Screwdrivers
  • Measuring tape

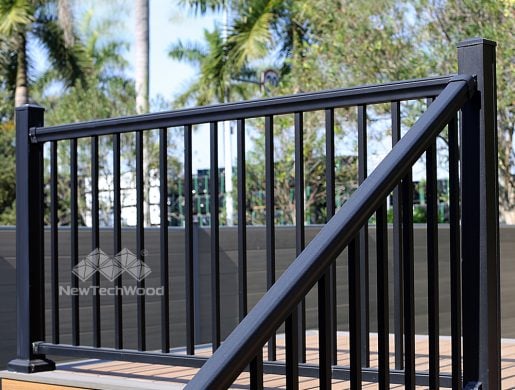

Straight Railing Installation

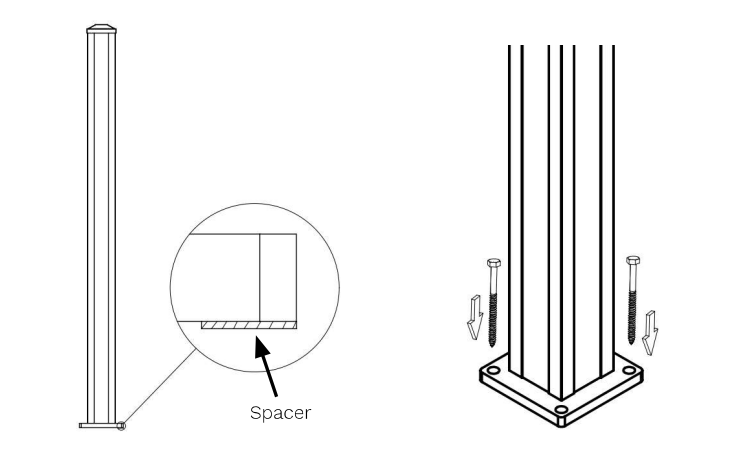

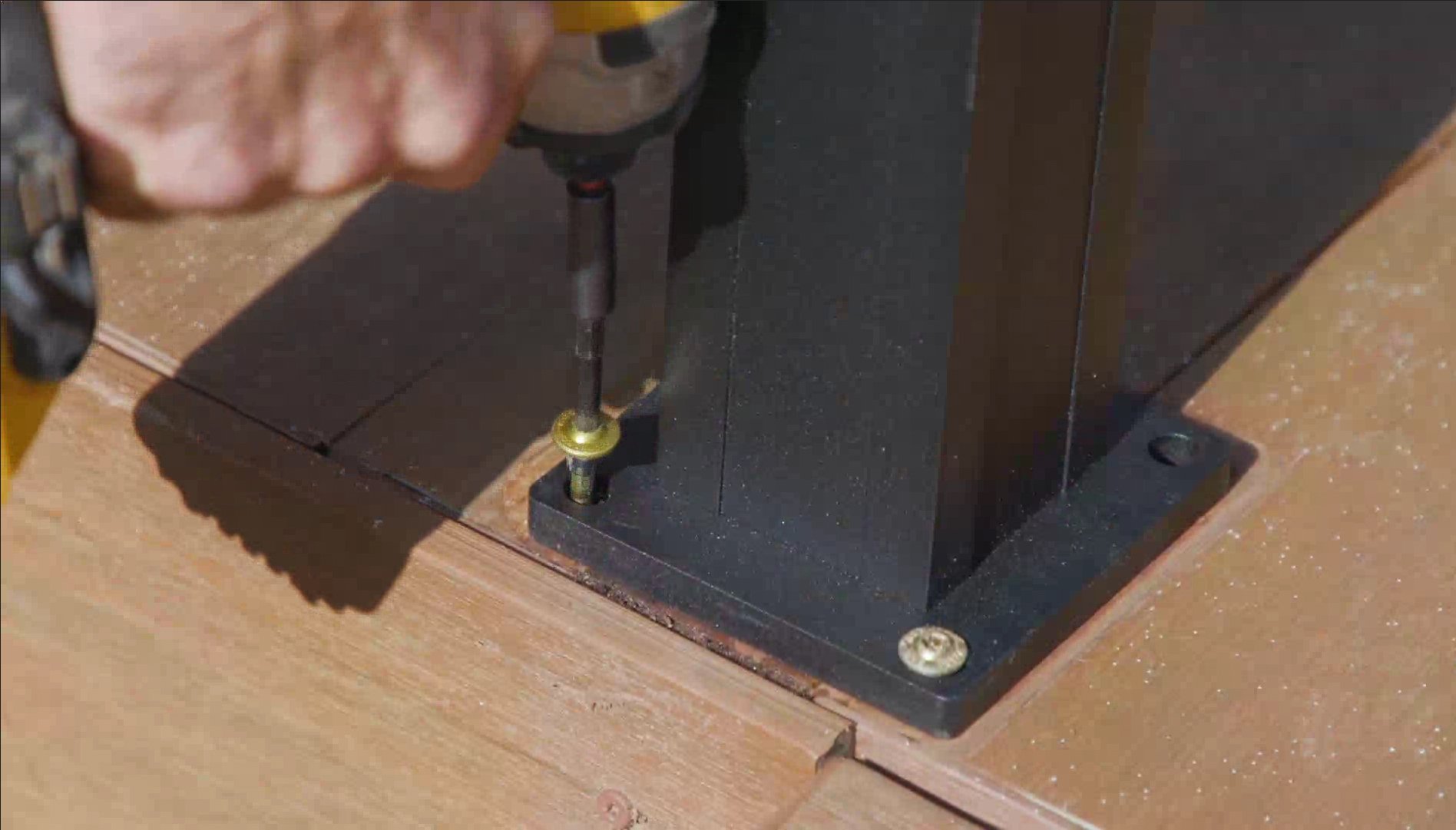

  1. Measure and locate all the posts.

    • Measure and locate all the posts.
    • Choose the appropriate fasteners to fasten the posts according to local building codes.
    • Ensure the posts are plumb. Use the provided shims to adjust the verticality.
    • The internal spacing between posts is 72″(1829mm) or96″(2438mm) if full sections are used.

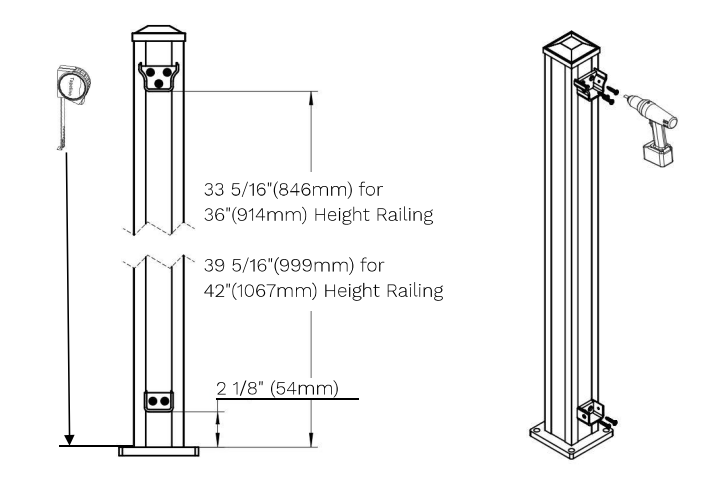

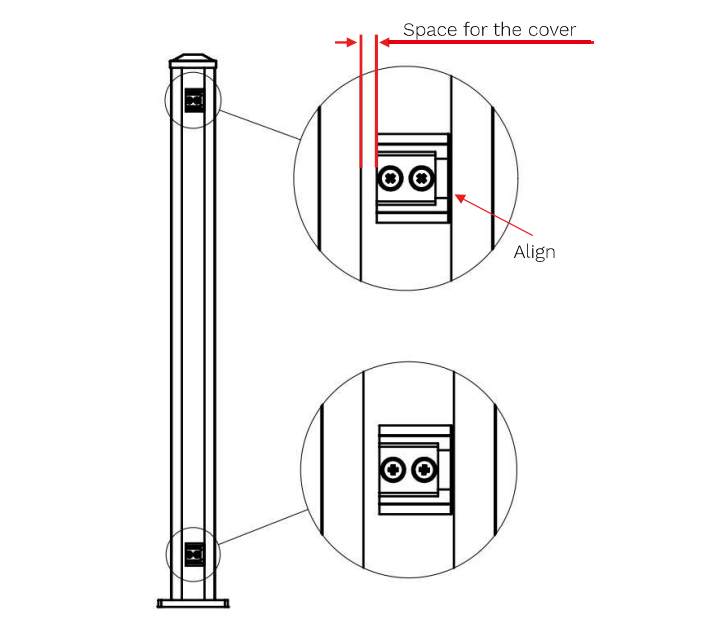

  2. Install the Bottom Brackets and Top Brackets.

    • Note: Pre-drill screw holes with 3/16″(4mm) drill bit when installing the brackets. Use the supplied #10-1″ pan head screws for the bracket.
    • Use a pencil to mark the position of the brackets.
    • Install the brackets to the post with #10 1″ screws.

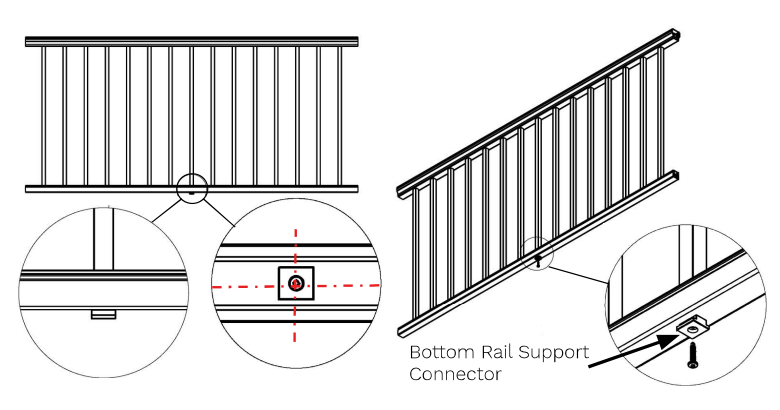

  3. Install the Bottom Rail Support Connector.

    • Mark the position of the bottom rail support connector.
    • For a 72″(1829mm) railing, the position should be in the middle of the Bottom Rail; For a 96″(2438mm) railing, the distance between the bottom rail support connector to the ends of the bottom railshould be 29 5/8″(752mm) on each side.
    • Install the bottom rail support connector with a #10 1″ screw.

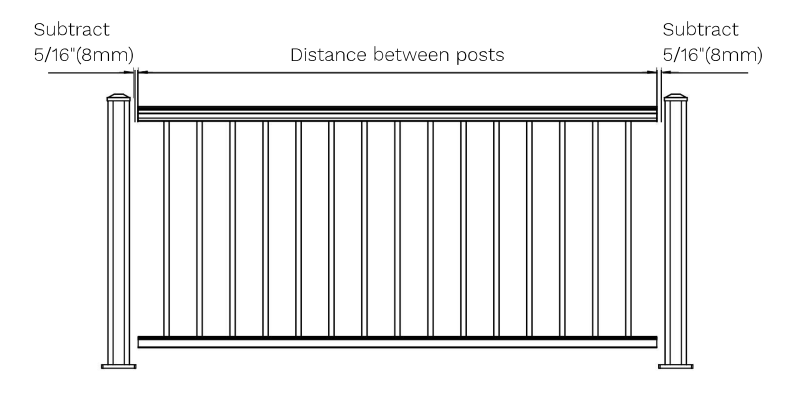

    • Note: For shorter sections,Remove an additional5/16″(8mm) on both ends (5/8″(16mm) overall) for the bracket to fit between the rail and post.Trim the top and bottom rails to length.
  4. Install the Pre-assembled panel to Brackets.

    • Insert the bracket cover into the ends of rail.
    • Set the top and bottom rail into the bracket. Secure the bracket to the rail using(2)#8-3/4″ flat head self-drilling screws.

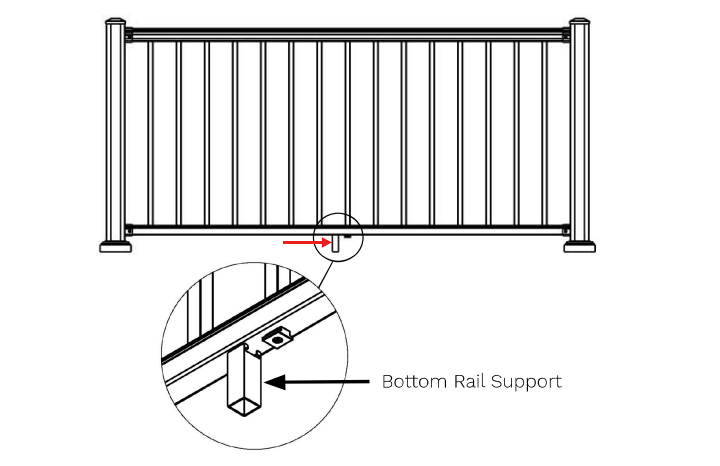

  5. Install the Bottom Rail Support.

    • Install the bottom rail support to the bottom rail support connector with a rubber hammer.

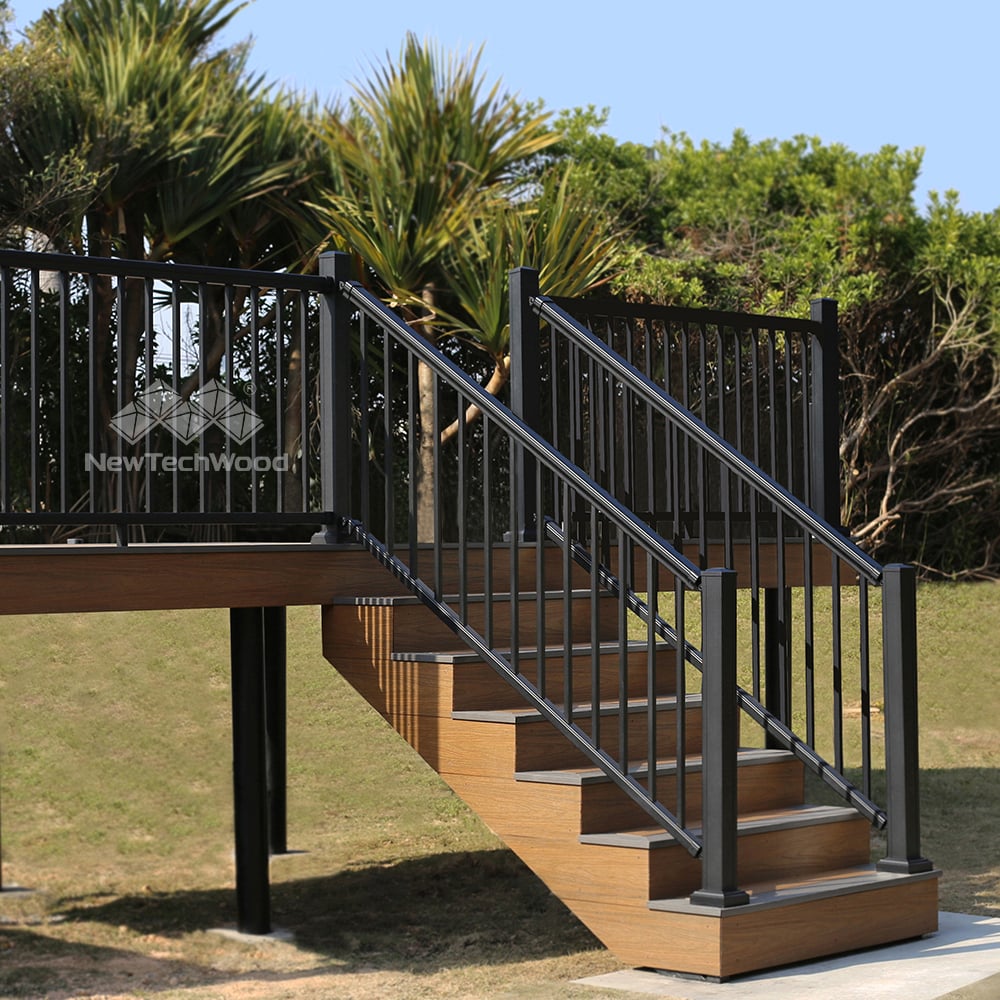

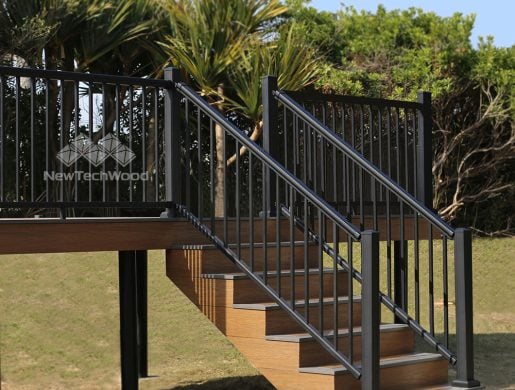

Stair Railing Installation

  1. Locate all the posts.

    • Ensure the posts are plumb. Use the provided shims to adjust the verticality.
    • Note: During installation, please don’t tilt the railing to the maximum angle repeatedly as this will scratch the powder coating on the pickets.

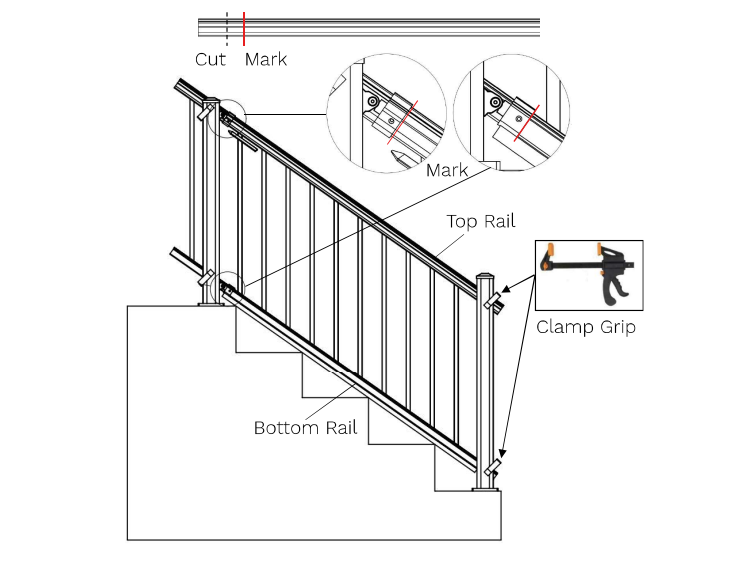

  2. Mark the position of the Stair Brackets.

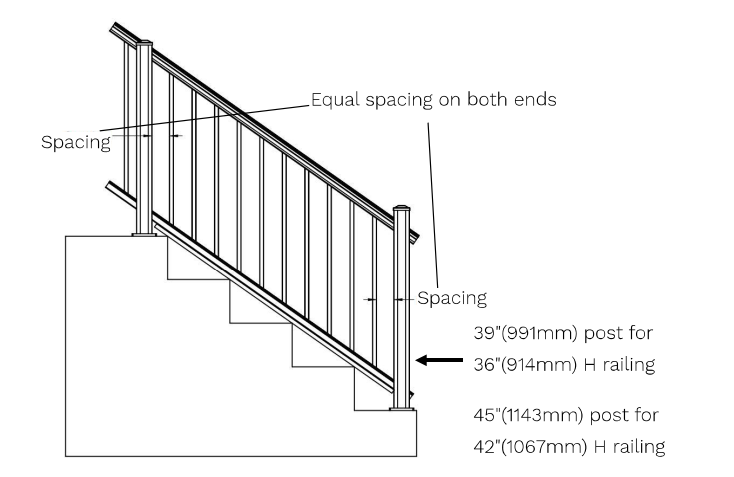

    • The distance between the post and the first picket should be less than 4″(102mm) and equal spacing on both ends.
    • Once the railing is in position,clamp the railing to the posts.

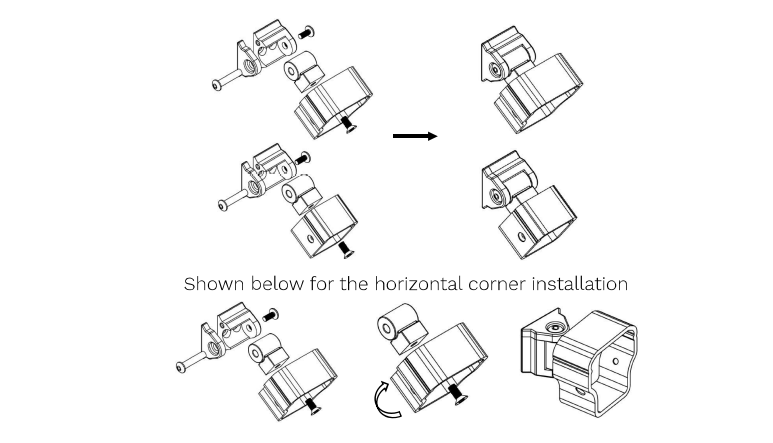

    • Temporarily assemble the swivel brackets. Position the swivel bracket in location and mark the position on the rails and posts.
    • Mark the cutting mark for the top rail and bottom rail, as shown in Note 1.
    • Cutting the top rail and bottom rail.
    • Note 1: Add 1″(25mm) from mark when cutting rails.
  3. Install the Stair Bracket Base.

    • Install the stair bracket base to the post with #10 1″ screws.
    • Install the brackets to the post with #10 1″ screws.

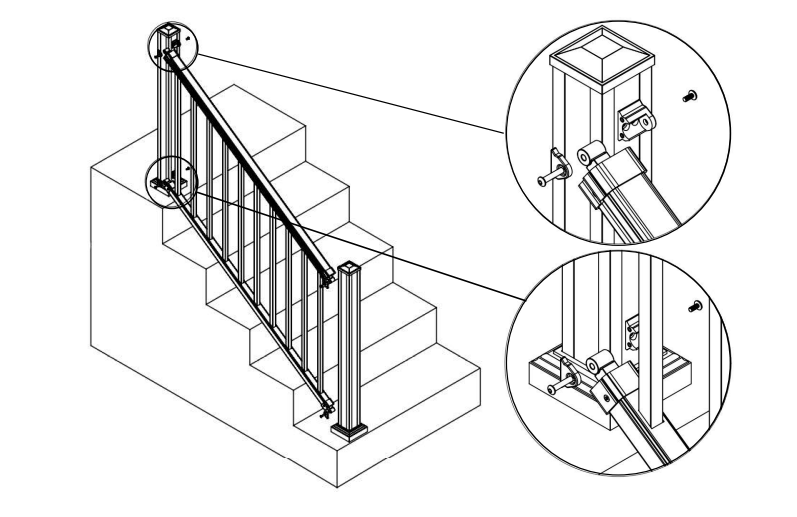

  4. Install the railing and brackets.

    • Set the top and bottom rail into the bracket with #8 3/4″ flathead self-drilling screws. Fasten the bracket to the bracket base using the rivet.

Install the Post Cap and the Post Trim

Install the post cap and post trim after all other components are installed.

The post cap locks into the post by using a rubber hammer or similar tool until it is tightened.

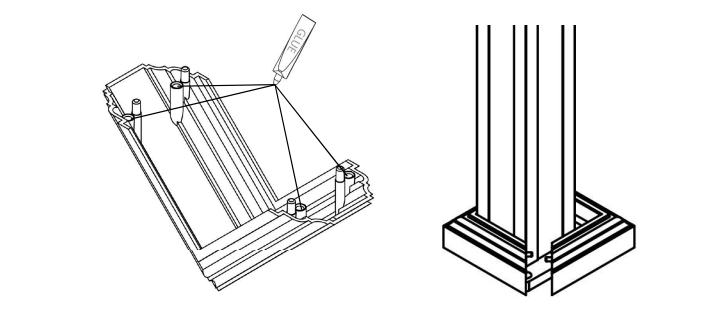

Install the post trim as follows:
Apply glue to the holes of the post trim (do not overflow) Assemble 2 sides of the post trim and press it together for approximately 6 seconds.
