Bell Series Composite Decking

Bell Series Composite Decking

Engineered to resist moisture and weather for long-lasting quality.

4-Sided
UltraShield capping
95%
Recycled materials
Zero
Staining or sealing
US53 - BELL SERIES

US53 - BELL SERIES

US53 - BELL SERIES specifications
Construction Solid
Width 5-7/16" (138 mm)
Depth 7/8" (22.5 mm)
Length 16' & 8'
Weight 2.14 lb/ft
Install Hidden fasteners

Solid deck board with a low scalloped design

PROFILES

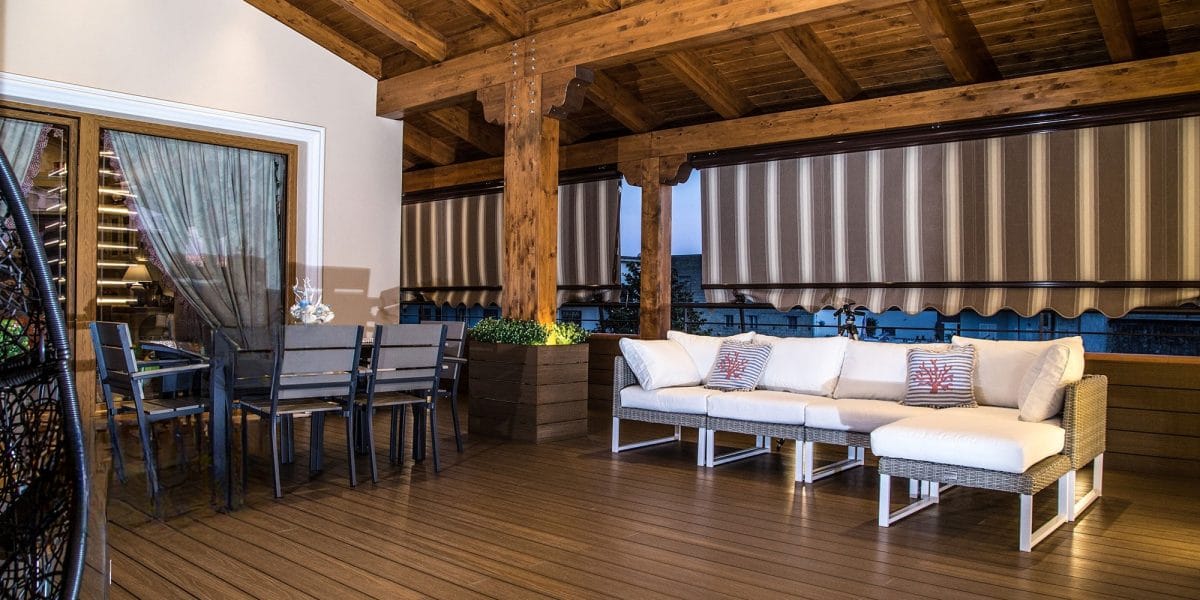

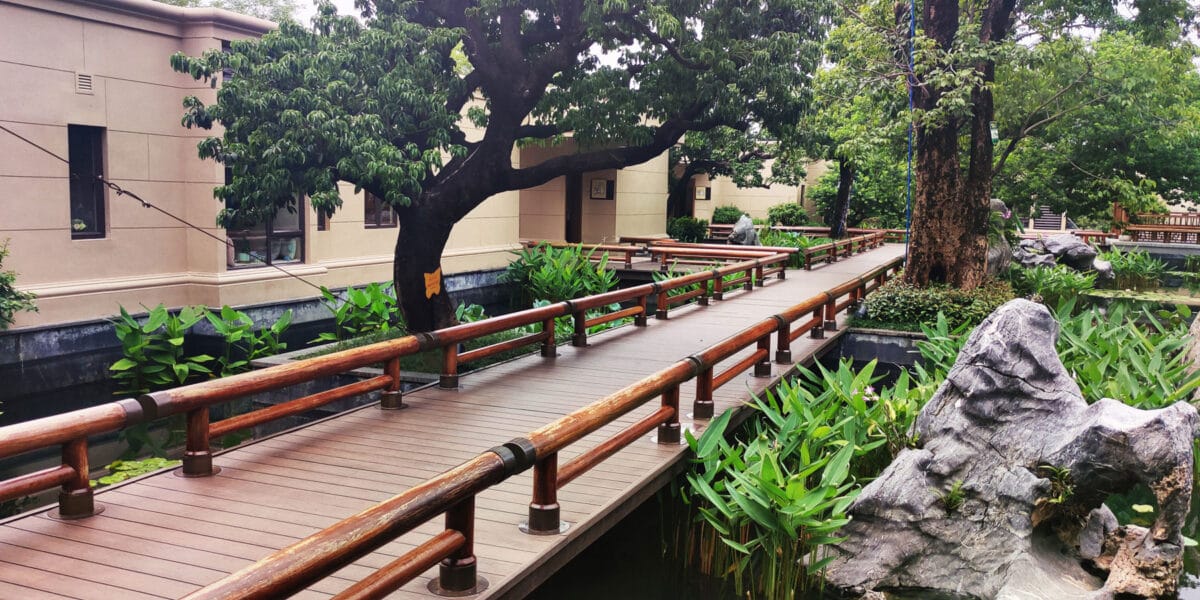

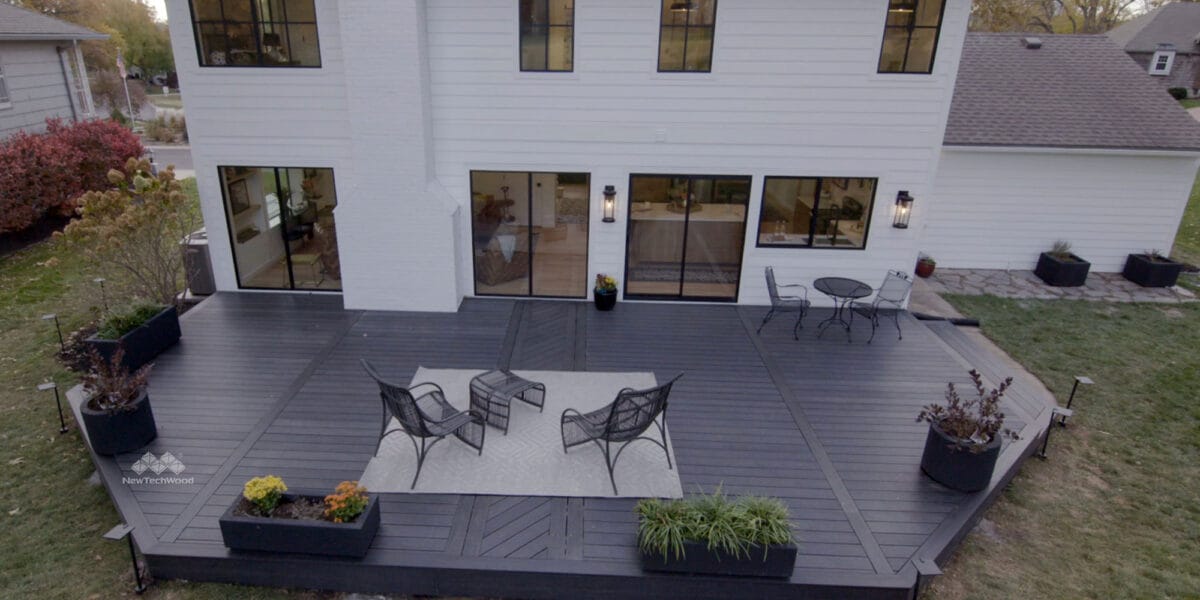

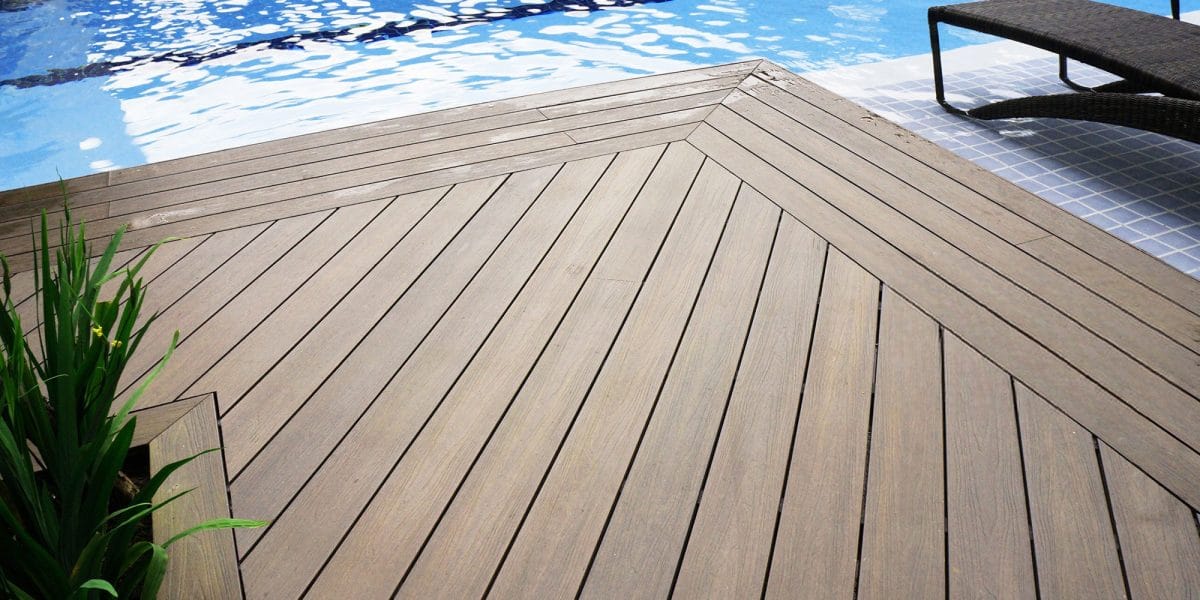

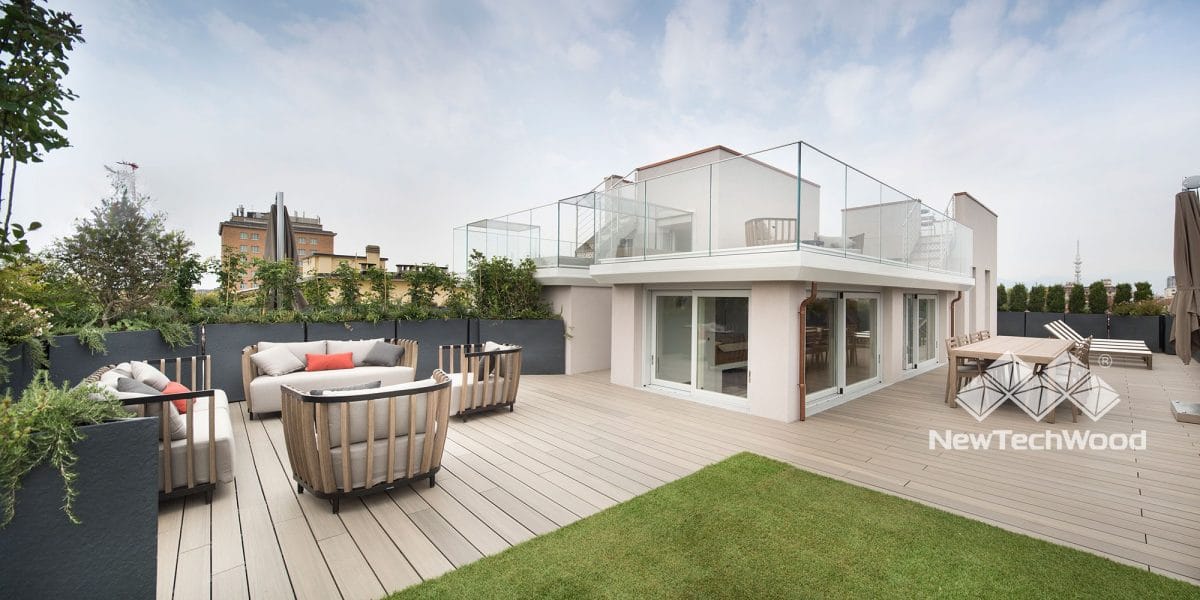

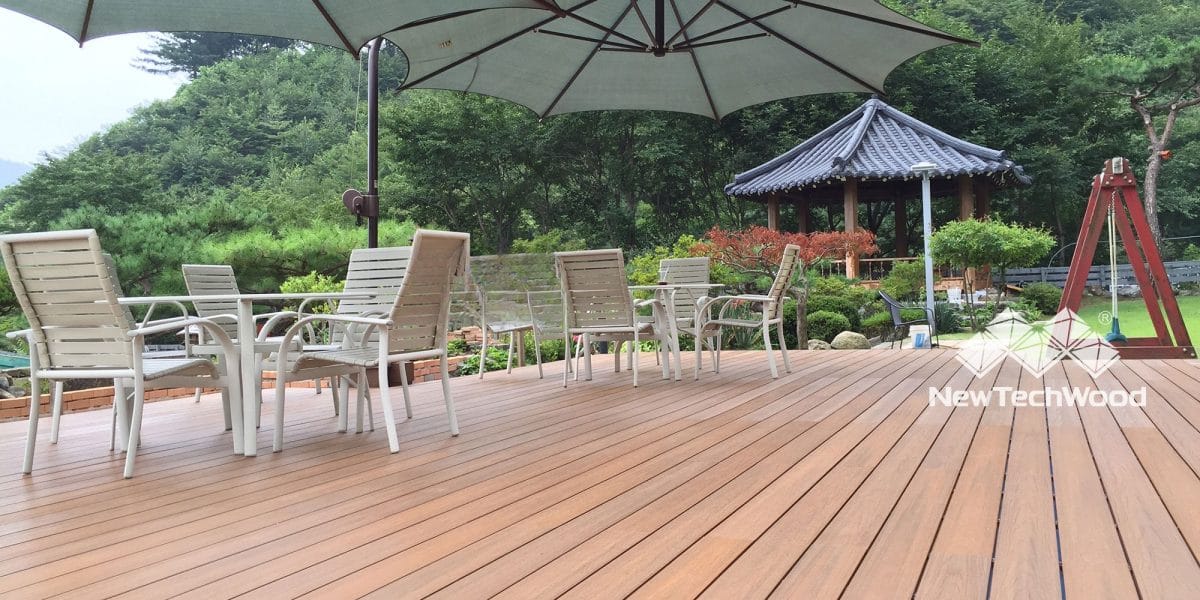

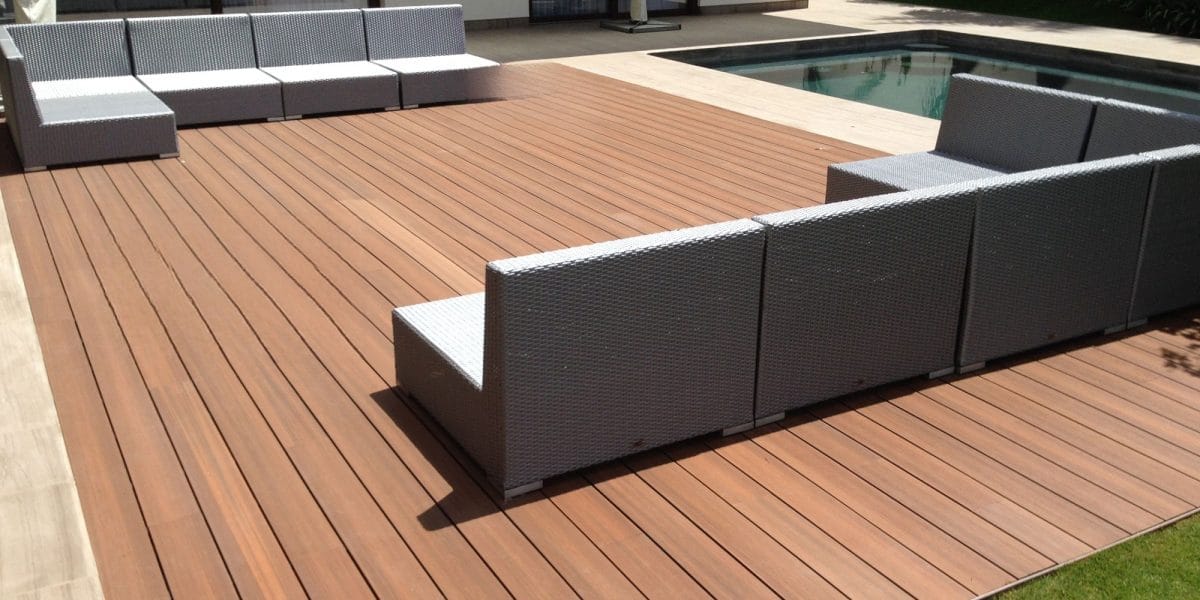

Bell Series composite decking pairs the warmth of natural hardwood with the structural confidence of UltraShield® capped composite — a solid board with a softly scalloped underside for clean hidden fastener concealment, finished in a deep Cathedral Wood Grain that catches light the way quartersawn oak does. Engineered for outdoor decking applications where appearance matters and seasonal maintenance doesn’t: pool decks, full-bleed backyard patios, second-story balconies, and rooftop terraces where the wood-look surface has to read right and stay that way for decades. Because every Bell board is wrapped in a full 360° polymer cap, barefoot summer traffic and November rain leave the same surface behind — dimensionally stable, color-stable, stain- and fade-resistant, and ready to host the next thirty years of dinners outside without the sanding-and-staining ritual of traditional wood decking.

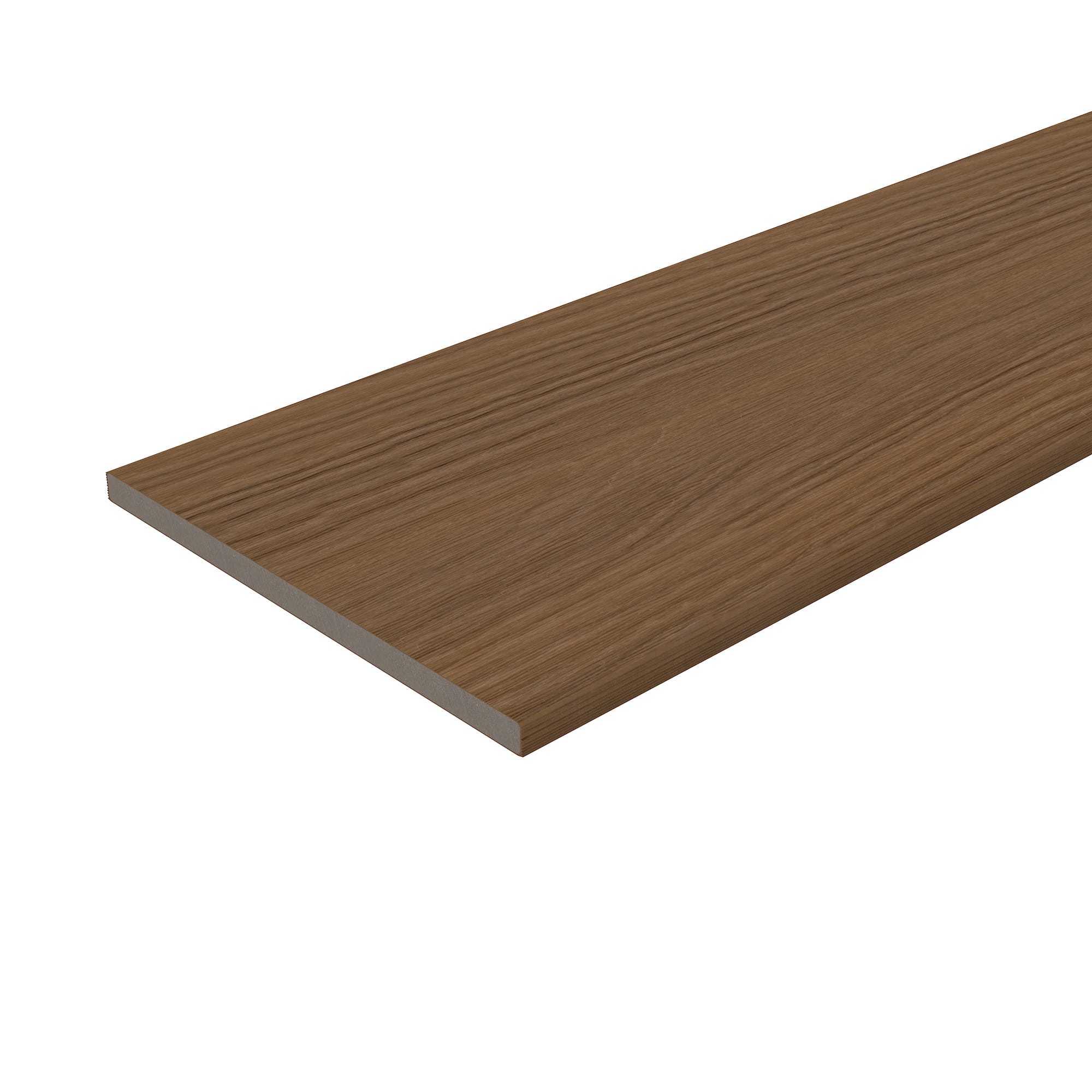

  • Bell deck boards come with Cathedral Wood Grain finish.
  • Straight Grain H1 Available in Selected Markets

Colors

Our UltraShield® Naturale™ color range includes an array of colors to suit any style. Take a look at the shades available to get inspiration for your next home or business project. Bell deck boards come with Cathedral Wood Grain finish. Straight Grain H1 Available in Selected Markets We also provide a custom color range, letting you fit composite decking into almost any existing style. Provide a photo of the color you’d like to match, and we’ll work to make your dream a reality. We also offer railing composite materials, banister composite materials and balcony composite materials to complete your deck or other home improvement project.

Downloads

Product literature, installation guides and technical documents for Bell Series.

Catalog

Installation Guide

  • Screw Location Template for Monarch Decking Installation
  • Monarch Decking Installation Guide
  • Locking Clips Position
  • Guia rapida de instalacion (Deck), Spanish
  • Guia de Instalacion (Deck), Spanish
  • Composite Decking Installation Guide

Care & Maintenance

  • MSDS UltraShield Composite Decking

Certificate

  • NewTechWood Deck Boards ICC-ES ESR-1084 Evaluation Report
  • NewTechWood Deck Boards ICC-ES ESL-1084 Evaluation Report
  • NewTechWood Composite Decking Test Report
  • NewTechWood 2023 SCS Recycled Content
  • NewTechWood Deck Boards ICC-ES ESR-3487 Evaluation Report
  • NewTechWood Deck Boards ICC-ES ESR-3487 Evaluation Report

Compliance

  • Newtechwood ESG Report 2023
  • Leadership in Energy and Environmental Design
  • ENVIRONMENTAL PRODUCT DECLARATION – Decking

Spec Sheet

  • Decking Naturale (US53) Technical Sheet
  • Decking Monarch (US129) Technical Sheet
  • Slip resistance-DIN51130 (DECKING.H6) Technical Sheet
  • Decking Monarch(US125)Technical Sheet
  • Spec Data Technical Datasheets
  • Manu Spec 3 Part Specifications
  • Decking Naturale (Solid) Technical Sheet
  • Decking Naturale (Hollow) Technical Sheet
  • Expansion and Contraction Values Sheet

Warranty

Other Documents

The UltraShield® Difference

Engineered to outlast the elements.

Every NewTechWood board pairs a dense polyethylene-and-wood-fiber core with a 360° polymer cap, tested against stains, scratches, fade, and boiling water. The result: composite that looks like wood, behaves like a fortress, and stays beautiful for decades.

Read the UltraShield® advantage
