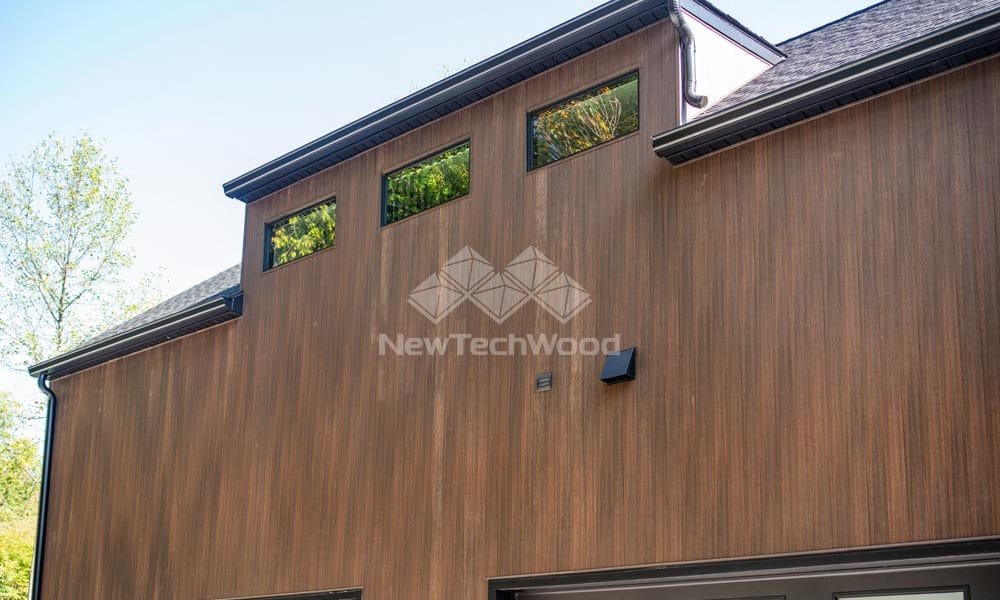

All Weather Pro Composite Siding

UltraShield®

All Weather Pro Composite Siding

V-groove composite cladding with a straight-grain finish — the pro-level refinement of All Weather.

Shop All Weather Pro
25-Year
Residential limited warranty
4-Sided
UltraShield capping
95%
Recycled materials
Zero
Staining or sealing

Profiles

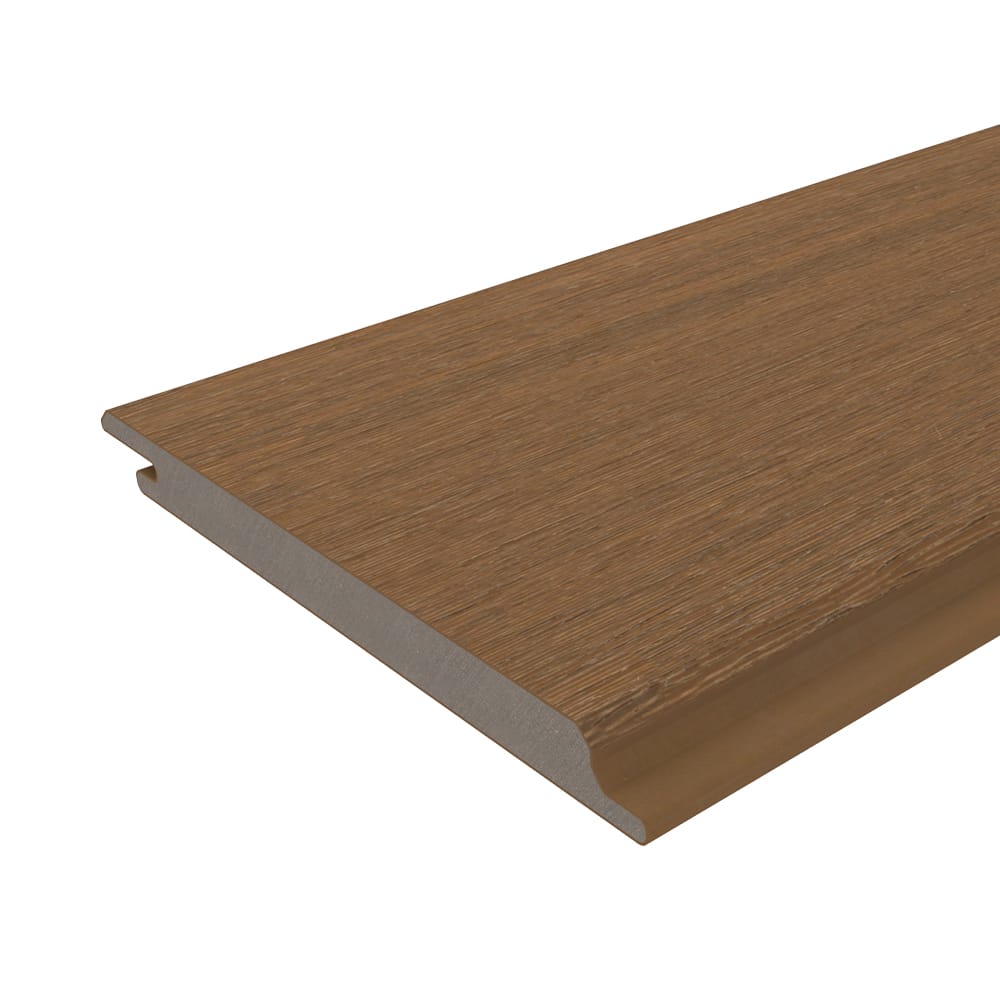

US135 — Tongue & Groove

US135 — Tongue & Groove

US135 — Tongue & Groove specifications
Depth 1/2″ (13 mm)
Width 5-9/16″ (142 mm)
Length 8′ & 16′
Weight 1.31 lb/ft
Install Hidden fasteners

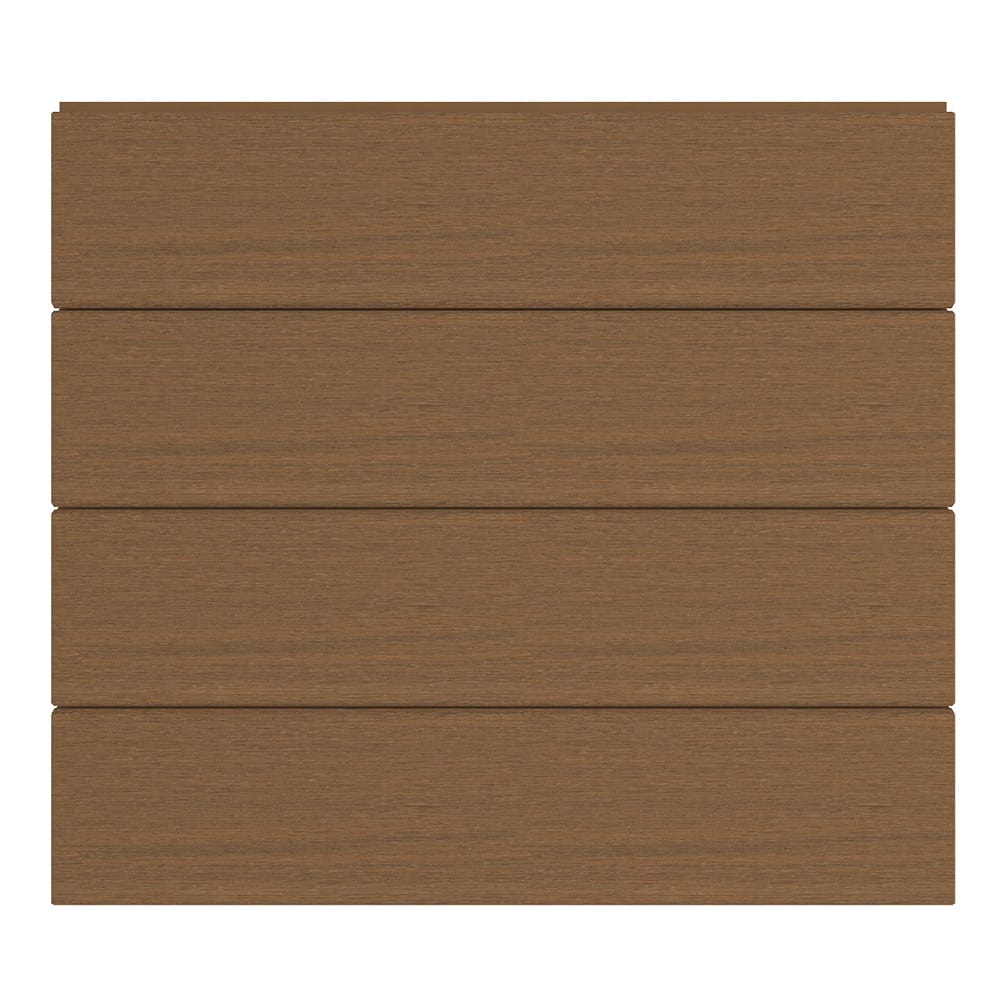

V-Groove Installation

V-Groove Installation

The optimized edge and corner design leaves a V-groove between boards as they are installed, drawing a crisp shadow line along every course.

Features

All Weather Pro is the same true rain-screen cladding system as All Weather — an UltraShield®-capped composite board installed with the same AW08 clips, starter strips and trims. What changes is the face: an optimized edge-and-corner design forms a clean V-groove at every joint, drawing a sharp shadow line across the facade, and an elegant straight-grain finish completes the more tailored, architectural look.

Colors

The full UltraShield® cladding palette — natural wood tones and contemporary grays, each finished with the same fade- and stain-resistant shell.

All Weather vs. All Weather Pro

Same rain-screen system, same AW08 clip installation — All Weather Pro refines the face. All Weather closes flush between courses in a classic wood grain; All Weather Pro meets in a V-groove and carries a straight-grain finish, for a sharper shadow line and a more tailored facade.
Feature All Weather (US09) All Weather Pro (US135)
Board joint Closed, flush V-groove
Finish Classic wood grain Straight grain
Installation AW08 clips Same AW08 clips & accessories
Board dimensions Depth 1/2″ (13 mm) Width 5-9/16″ (142 mm) Depth 1/2″ (13 mm) Width 5-9/16″ (142 mm)

Gallery

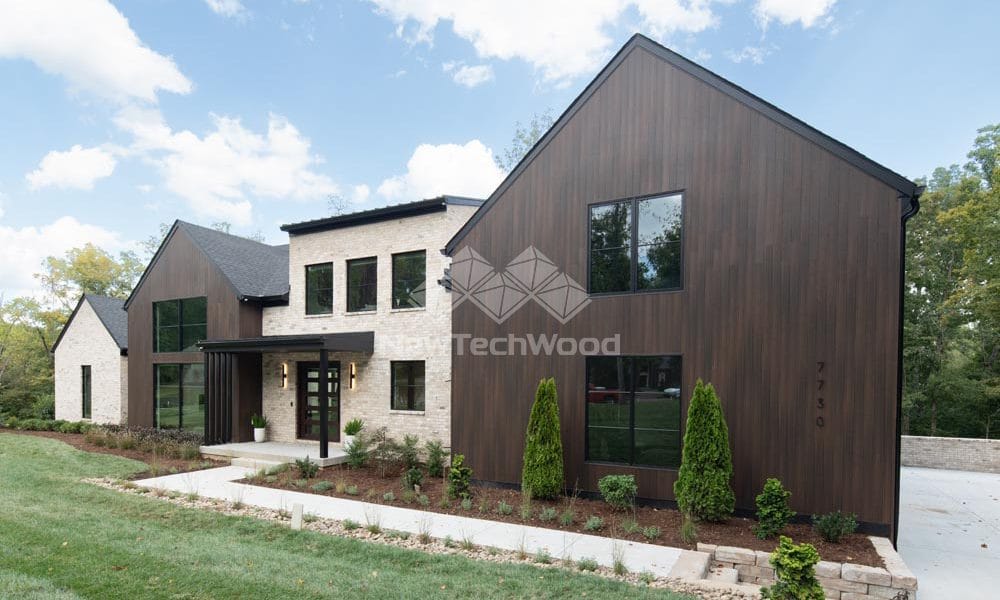

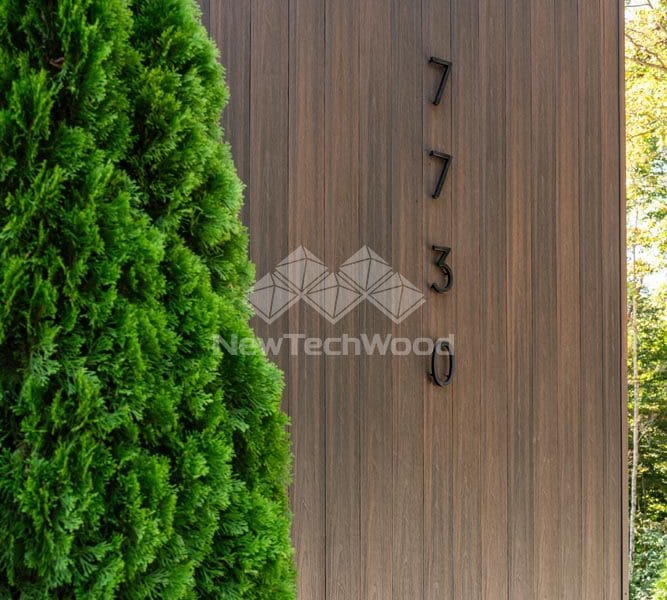

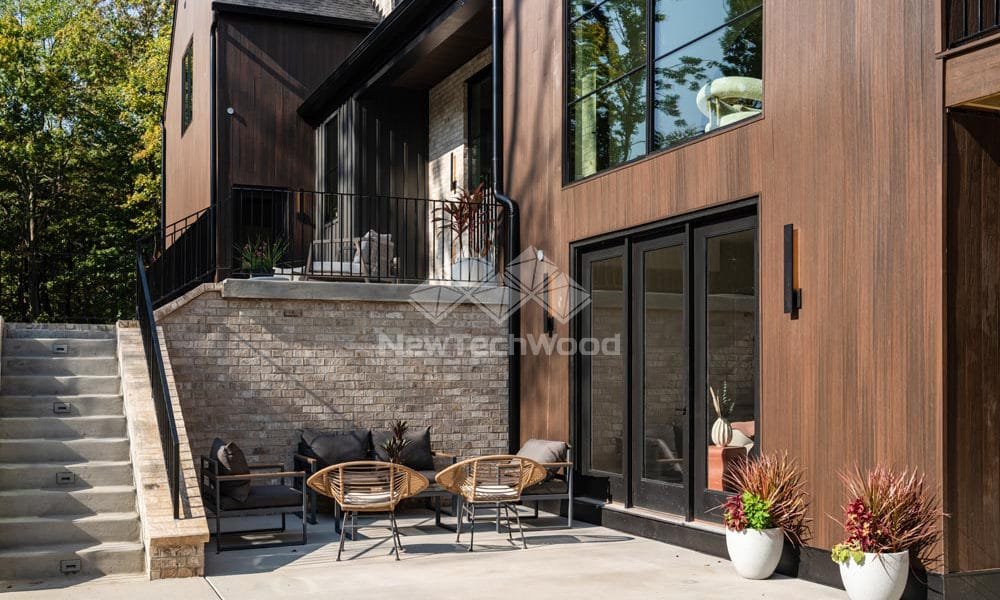

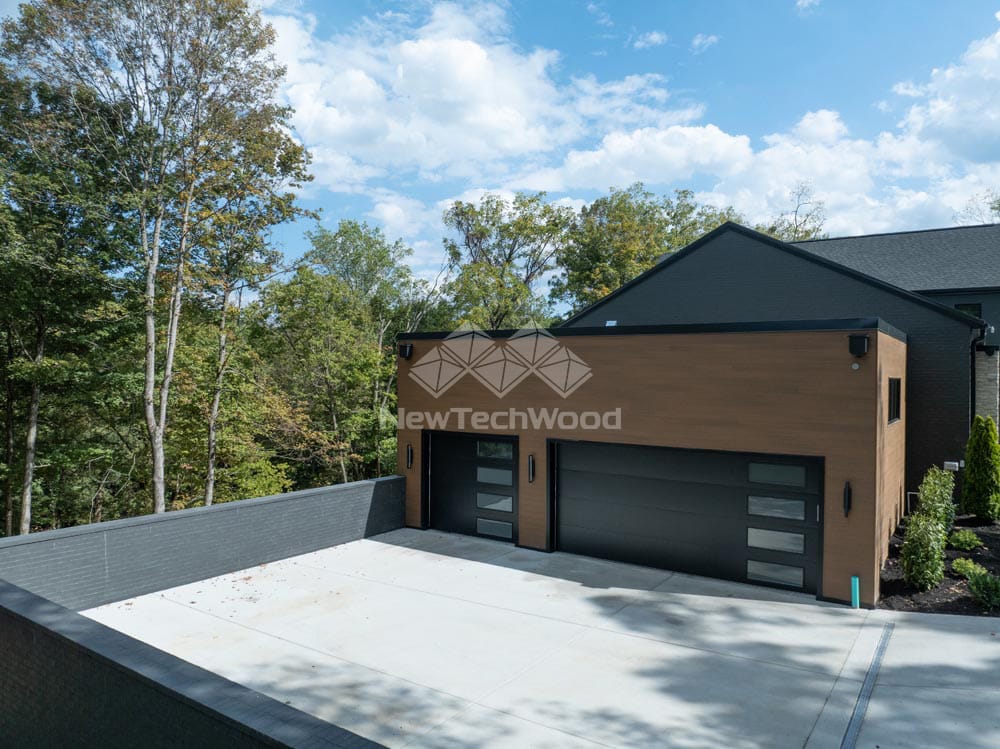

US135 on the wall — facades, corners and details.

See It In Action

All videos
Video: Composite Siding Deep Dive Play video

Composite Siding Composite Siding Deep Dive

All Weather Siding Deep Dive — the rain-screen system, board to building.

More to watch

Trims & Accessories

All Weather Pro installs with the same purpose-made trims and hardware as All Weather — composite or aluminum trims that close every edge, corner and butt joint, and the clips that fix each course in place.

Composite Trims

  • F-Trim US44

    F-Trim US44

    F-Trim US44 specifications
    Size 1-7/8″ × 1-3/4″ (47 × 44 mm)
    Weight 0.53 lb/ft
    Closes the outermost edge of a run.
    View product
  • H-Trim US45

    H-Trim US45

    H-Trim US45 specifications
    Size 3-1/8″ × 1″ (79 × 27 mm)
    Weight 0.71 lb/ft
    Covers the butt joint between two boards.
    View product
  • Outside Corner Trim US46

    Outside Corner Trim US46

    Outside Corner Trim US46 specifications
    Size 2-5/16″ × 2-5/16″ (59 × 59 mm)
    Weight 0.85 lb/ft
    View product
  • Inside Corner Trim US47

    Inside Corner Trim US47

    Inside Corner Trim US47 specifications
    Size 2-13/16″ × 2-13/16″ (72 × 72 mm)
    Weight 1.13 lb/ft
    View product

Aluminum Trims

  • F-Trim CA155-AA154

    F-Trim CA155-AA154

    F-Trim CA155-AA154 specifications
    Size 2″ × 1-13/16″ (50.8 × 46 mm)
    Weight 0.66 lb/ft
  • H-Trim CA162-AA45

    H-Trim CA162-AA45

    H-Trim CA162-AA45 specifications
    Size 1″ × 2-3/16″ (25.4 × 55.6 mm)
    Weight 0.48 lb/ft
  • Outside Corner Trim CA161-AA159

    Outside Corner Trim CA161-AA159

    Outside Corner Trim CA161-AA159 specifications
    Size 2-3/16″ × 3-9/16″ (55.6 × 90.5 mm)
    Weight 0.92 lb/ft
  • Inside Corner Trim CA50-AA46

    Inside Corner Trim CA50-AA46

    Inside Corner Trim CA50-AA46 specifications
    Size 2-5/8″ × 2-11/16″ (66.7 × 68.3 mm)
    Weight 0.95 lb/ft
  • Flashing CA41

    Flashing CA41

    Flashing CA41 specifications
    Size 3-3/16″ × 3-3/16″ (81 × 81 mm)
    Weight 0.58 lb/ft
    Window head, window sill and butt-joint flashing.
  • Perforated Starting Trim CA42

    Perforated Starting Trim CA42

    Perforated Starting Trim CA42 specifications
    Size 1″ × 1-5/8″ (25.4 × 41.3 mm)
    Weight 0.32 lb/ft

Hardware

  • Siding Clips AW08

    Siding Clips AW08

    Siding Clips AW08 specifications
    Material Aluminum
    Size 1-1/8″ × 9/16″ × 13/16″ (28 × 14.5 × 20 mm)
    Weight 1.06 lb/bag
    Fixed to the joists — carries the connection between each board.
    View product
  • Starter Strip AW02

    Starter Strip AW02

    Starter Strip AW02 specifications
    Material Aluminum
    Size 11/16″ × 9/16″ (15 × 14.5 mm)
    Weight 0.32 lb/piece
    Sets the first cladding board on the joist.
    View product
  • Rubber Stopper T-7

    Rubber Stopper T-7

    Rubber Stopper T-7 specifications
    Material Rubber
    Size ø11/16″ × H 5/16″ (ø18 × H8 mm)
    Weight 0.25 lb/bag
    Supports the board on the joist when fitting the last course.
    View product

Downloads

Product literature, installation guides and technical documents for All Weather Pro.

Catalog

Installation Guide

  • Alusions Siding Trims Installation Guide
    PDF
  • Guia de instalacion (US09), Spanish
    PDF
  • All Weather Siding Ceiling Installation Guide
    PDF
  • All Weather Siding Vertical Installation Guide
    PDF
  • All Weather Siding Horizontal Installation Guide
    PDF

Certificate

  • NewTechWood All Weather Models US09 and US135 Miami-Dade Notice of Acceptance
    PDF
  • NewTechWood ALL WEATHER SIDING ICC ES ESL 1288 Evaluation Report
    PDF
  • NEWTECHWOOD CLADDING BOARDS ICC-ES ESL-1054 EVALUATION REPORT
    ZIP PDF
  • NEWTECHWOOD ALL WEATHER SIDING US09 ICC-ER ESR-3923 EVALUATION REPORT
    ZIP PDF
  • State of Florida US09 SIDING Product Approval
    Link
  • NEWTECHWOOD US09 SIDING MIAMI-DADE COUNTY NOTICE OF ACCEPTANCE
    PDF
  • NEWTECHWOOD ALL WEATHER SIDING US09 ICC-ER ESR-3923 EVALUATION REPORT
    PDF

Spec Sheet

Warranty

Other Documents

The UltraShield® Difference

Engineered to outlast the elements.

Every NewTechWood board pairs a dense polyethylene-and-wood-fiber core with a 360° polymer cap, tested against stains, scratches, fade, and boiling water. The result: composite that looks like wood, behaves like a fortress, and stays beautiful for decades.
