COMPOSITE DECKING ACCESSORIES

DECK FINISHERS

UltraShield® has the following composite decking accessories available: colored head stainless steel screws, starter clips, hidden fastener systems, end caps for hollow profiles, and fascia boards in various dimensions for different applications. From composite deck screws to joist tape, we provide what you need to perfectly finish your decking.

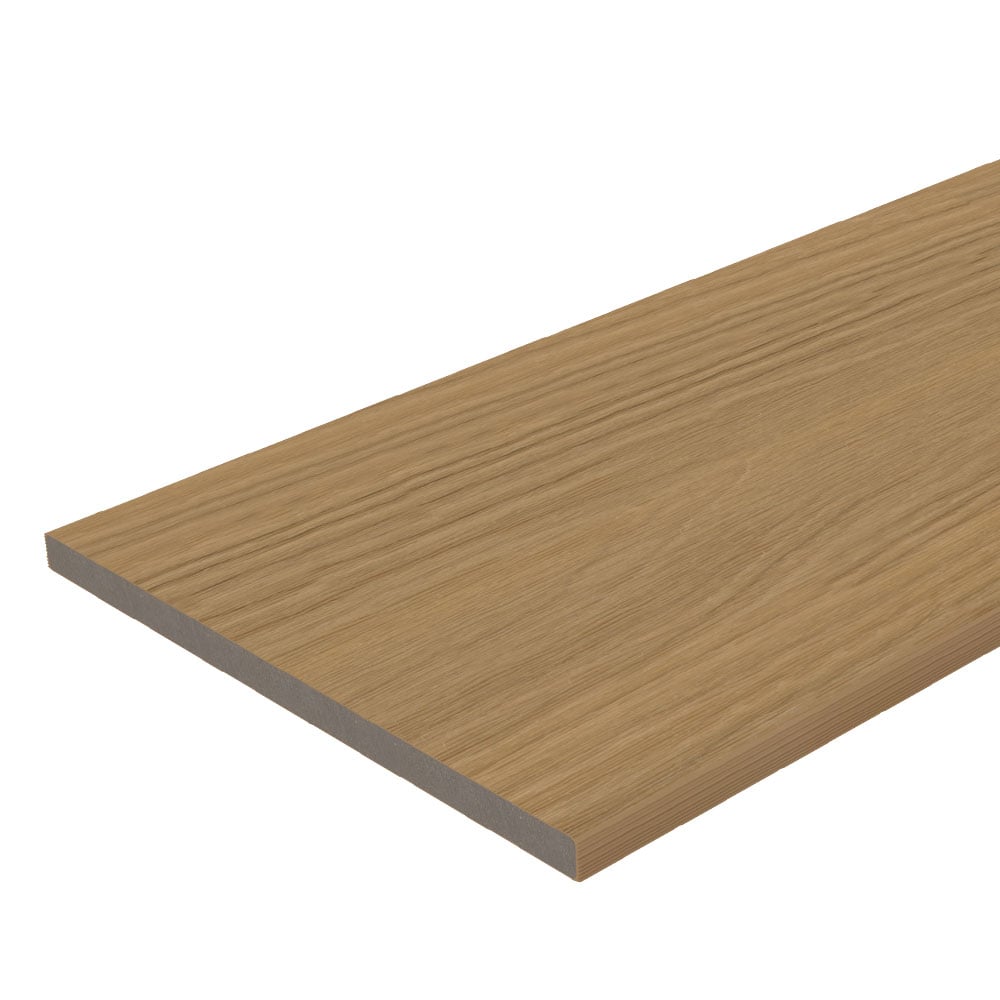

DECK FASCIA

Composite deck fascia boards provide the perfect finishing touch and create a smooth, streamlined look for your composite wood deck. Composite fascia board creates a band of wood bordering the deck just below the surface line to hide the joists underneath and elevate the overall appearance of the deck.

Length: 12' 11-1/4 x 9/16 INCH (285 x 15mm)
Length: 8' 1-9/16 x 1-9/16 INCH (40 x 40 mm)

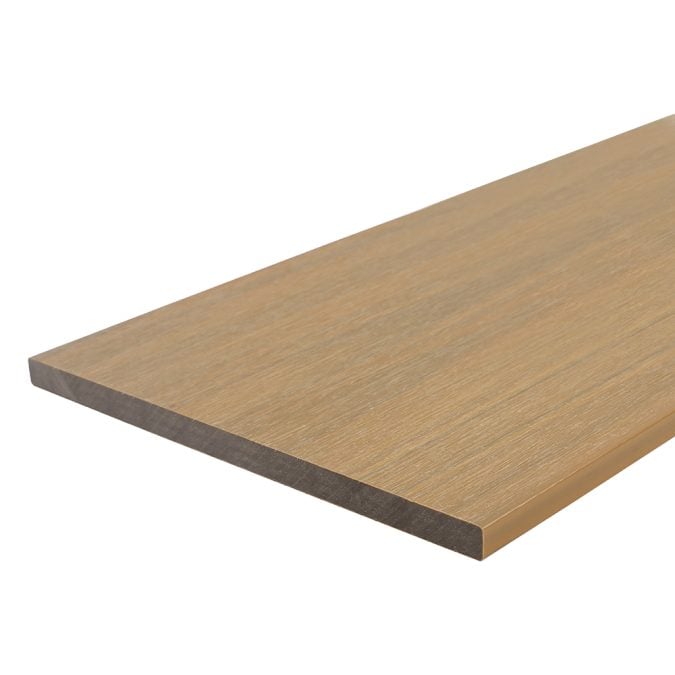

US05

Length: 12' 11-1/4 x 9/16 INCH (285 x 15mm)

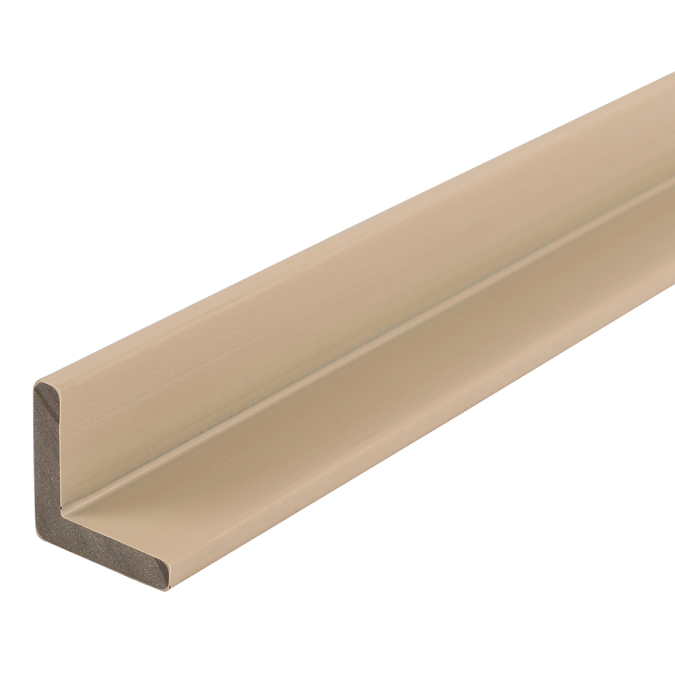

US20

Length: 8' 1-9/16 x 1-9/16 INCH (40 x 40 mm)

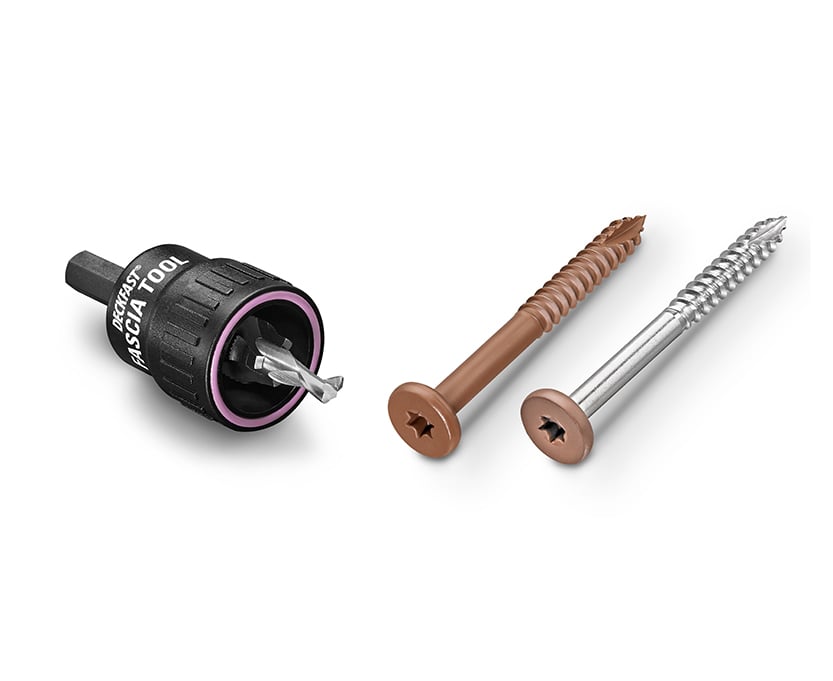

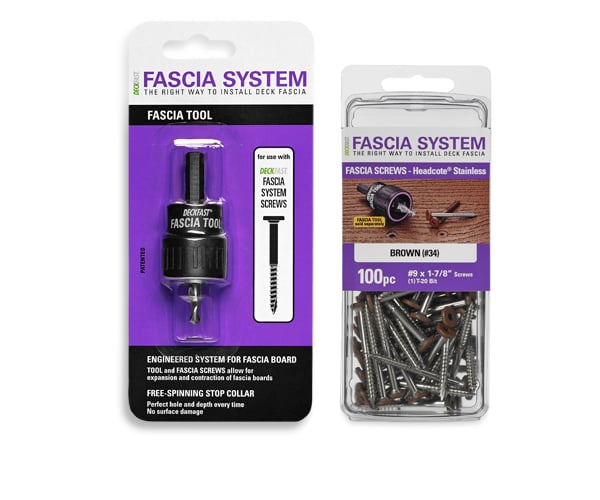

DECKFAST® Fascia System

The precisely engineered Deckfast® Fascia System includes the Fascia Tool and specially designed, color coated, Fascia Screws available in Headcote® stainless steel or epoxy coated carbon steel.

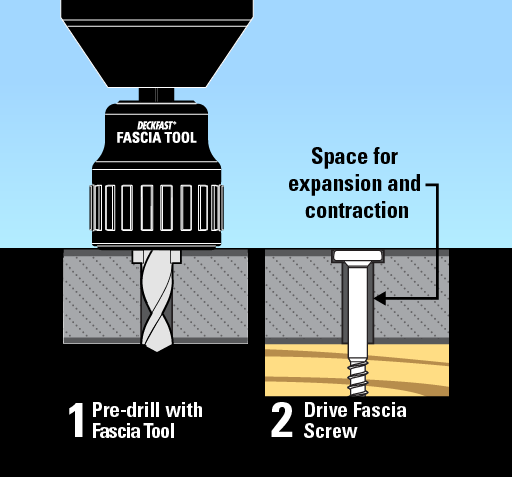

The Fascia System is designed to accommodate the large amount of expansion and contraction that can occur with many composite and PVC deck fascia boards. The pre-drilling tool creates an over-sized hole for the Fascia Screw, so that the fascia board hangs from the screw and can expand and contract without putting a large amount of force on the fastener.

Fascia Screws feature star drive recesses and are ACQ approved. Follow the decking manufacturer’s recommendation when selecting either stainless or epoxy coated fascia screws. In general, for applications where either corrosion or especially large amounts of expansion and contraction of the fascia material is a concern, use stainless Fascia Screws.

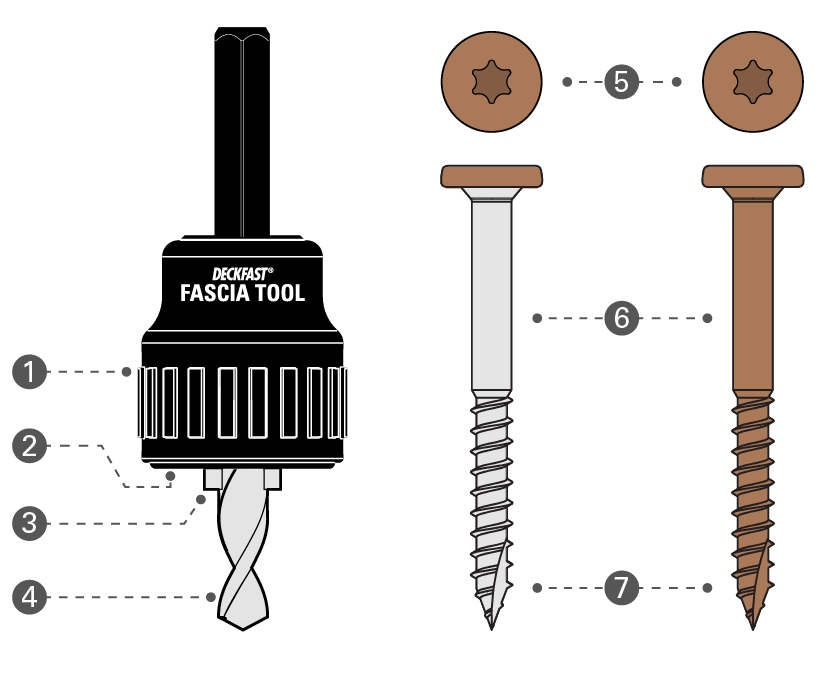

FASCIA TOOLS

Free Spinning Stop Collar with O-ring
The stop collar spins free of the drill bit, prevent marring or burnishing of the fascia board surface.

Anti-clog Debris Cavity
The cavity gathers waste material, keeping it clear of the countersink.

Pre-set Countersink
The Fascia Tool matches the head diameter and countersink depth of the Fascia Screw for the perfect hole and fit.

Pre-set Shaft length
Together with the countersink, the overall hole depth is designed for use with fascia boards from 1/2″ to 3/4″ thick.

Application and Usage Notes

Follow the deck fascia board manufacturer’s installation instructions. The Fascia System is designed for use with fascia boards from 1/2″ to 3/4″ thick. Use the Fascia Tool to pre-drill and countersink all holes in the fascia board. The hole is complete when the stop collar stops spinning. Set the fascia board in place and fasten with Fascia Screws. Drive screws until flush with the fascia board; do not over-tighten. The fascia board should hang from the screws to allow for expansion and contraction.

JOIST TAPE

Joist tape is a self-adhesive waterproof tape designed to shield joists, beams, ledger boards and cut ends from moisture, stop decay and wood rot. It is made of a rubberized asphalt mastic adhesive.

ADVANTAGES

  • Protects the joist from water infiltrations
  • Noiseproofing / Reduces impact sound transmission

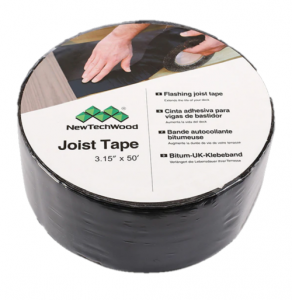

Joist Tape

3-1/8 x 60 INCH
(80 x 1524 mm)

END CAPS

NewTechWood composite wood decking boards have 360-degree capping to completely seal and protect your boards from environmental hazards, moisture and decay, but this still leaves the end cut areas to consider. Fortunately, we offer a choice of moisture seals and composite decking end caps that work perfectly with our products, fitting in seamlessly with the board of the deck and offering your end cut areas ultimate protection.

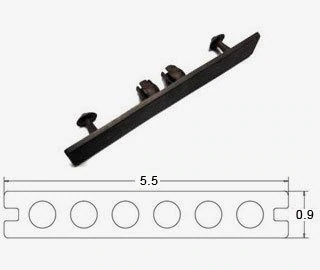

Board: UH02 | End Cap: EC-UH02

5-7/16 x 7/8 INCH
(138 x 22.5mm)

MORE ABOUT END CAPS

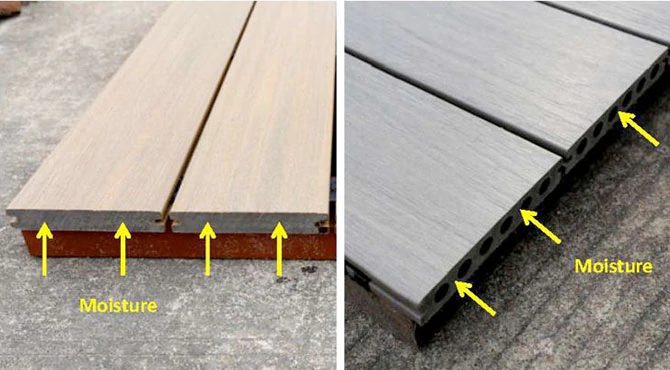

Moisture can penetrate to the core in the end-cut area and could cause swelling, cupping and cracking at the edge area. All NewTechWood® composite deck board end caps are made of TPO Plastic which is durable and has high impact resistance under harsh weather conditions and extreme low temperature of – 40°C.

RECOMMENDATION

  • Solid Board: Moisture seal should be applied at the end-cut
  • Hollow Board: End-Cap should be installed at the end-cut

Tools

Application

SOLID BOARD:

Apply the Water-based Sealer at the edges using brush:

HOLLOW BOARD:

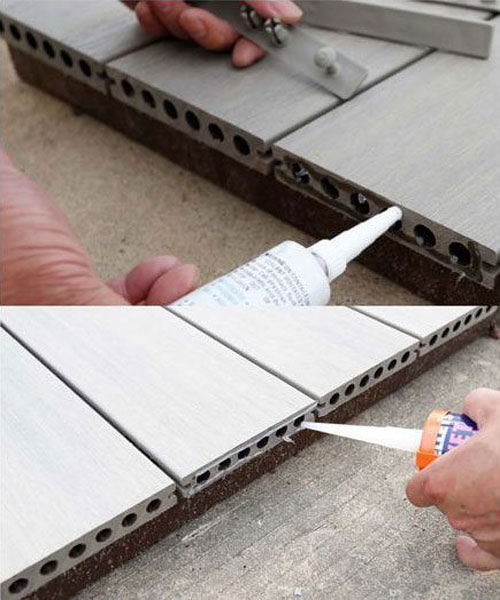

Step 1: Apply the silicone sealant to the edges of the board.

Step 2: You can also apply the sealant directly to the end cap.

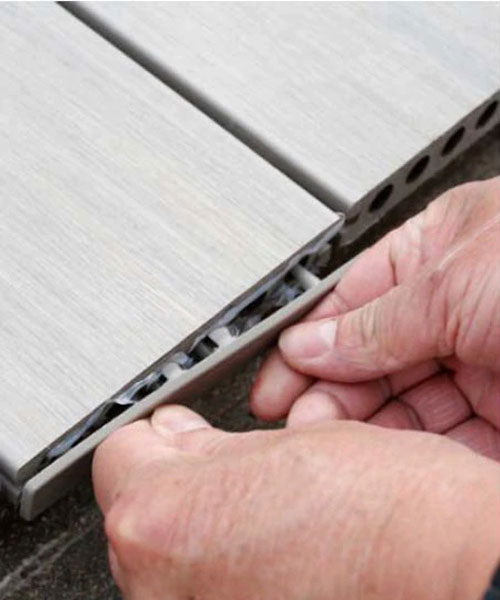

Step 3: Insert the end cap into the hollow board.

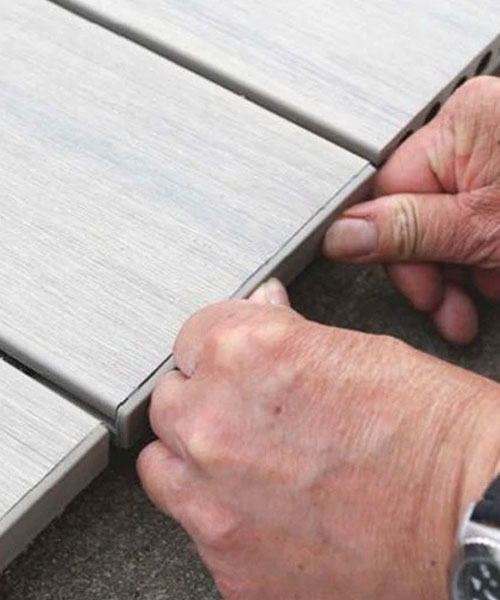

Step 4: Make sure the end cap is pressed firmly into place.

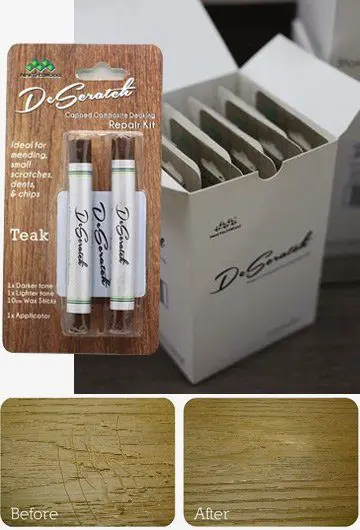

WAX PEN

If you somehow sustain tiny scratches, holes or chips to your composite deck, all is not lost. We have just the product to have your deck looking as good as new.

NewTechWood DeScratch Repair Kit for mending small scratches, splits, nail holes, chips, gouges & damaged edges in capped composite or natural timber.

  • Remove any high points using the applicator
  • Rub the wax over the damaged area until level
  • Remove any excess wax using the applicator

Each pack contains: 3/8 x 3/8 inch Darker tone Wax Stick, 1/16 x 3/8 inch Lighter tone Wax Stick, 1 x pcs Applicator (*Charcoal color has 2 same tone sticks)

W 3-1/2 x H 6-5/16 x D 5/8 inch (W 8 x H 16 x D 2 cm)

Standard colours: Peruvian Teak, Brazilian Ipe, Westminister Gray, Hawaiian Charcoal, Spanish Walnut, Roman Antique
