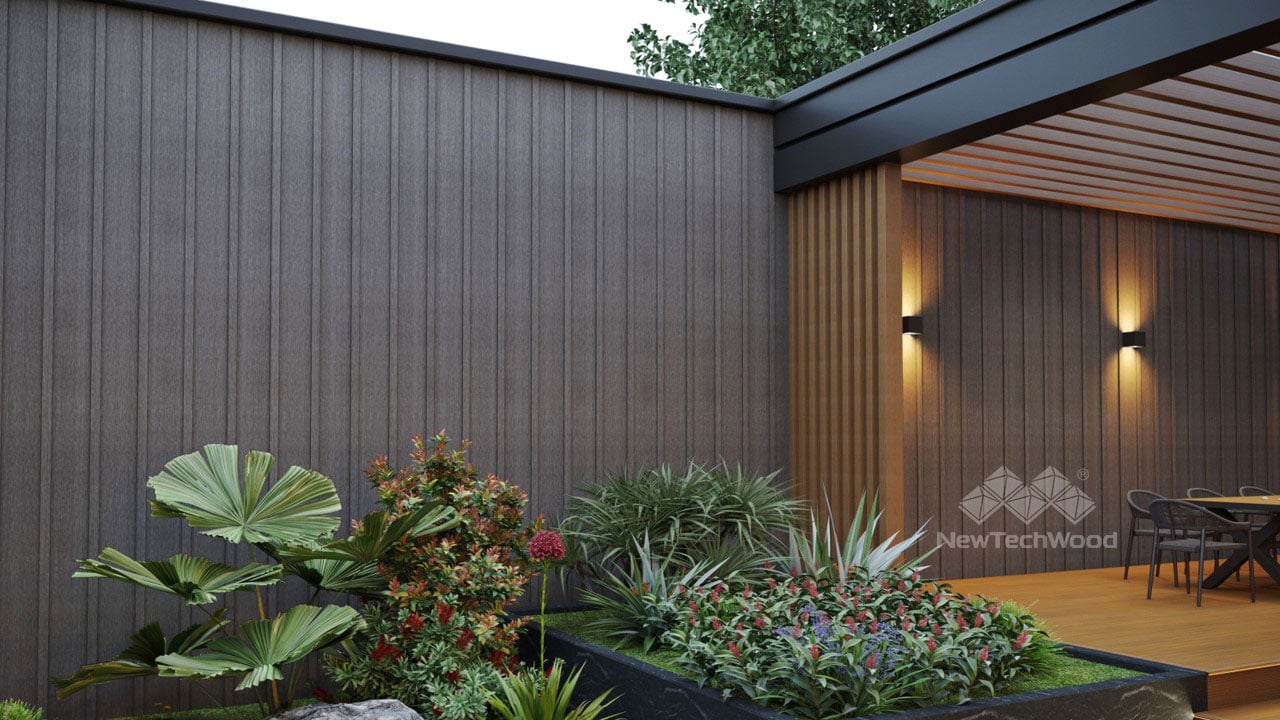

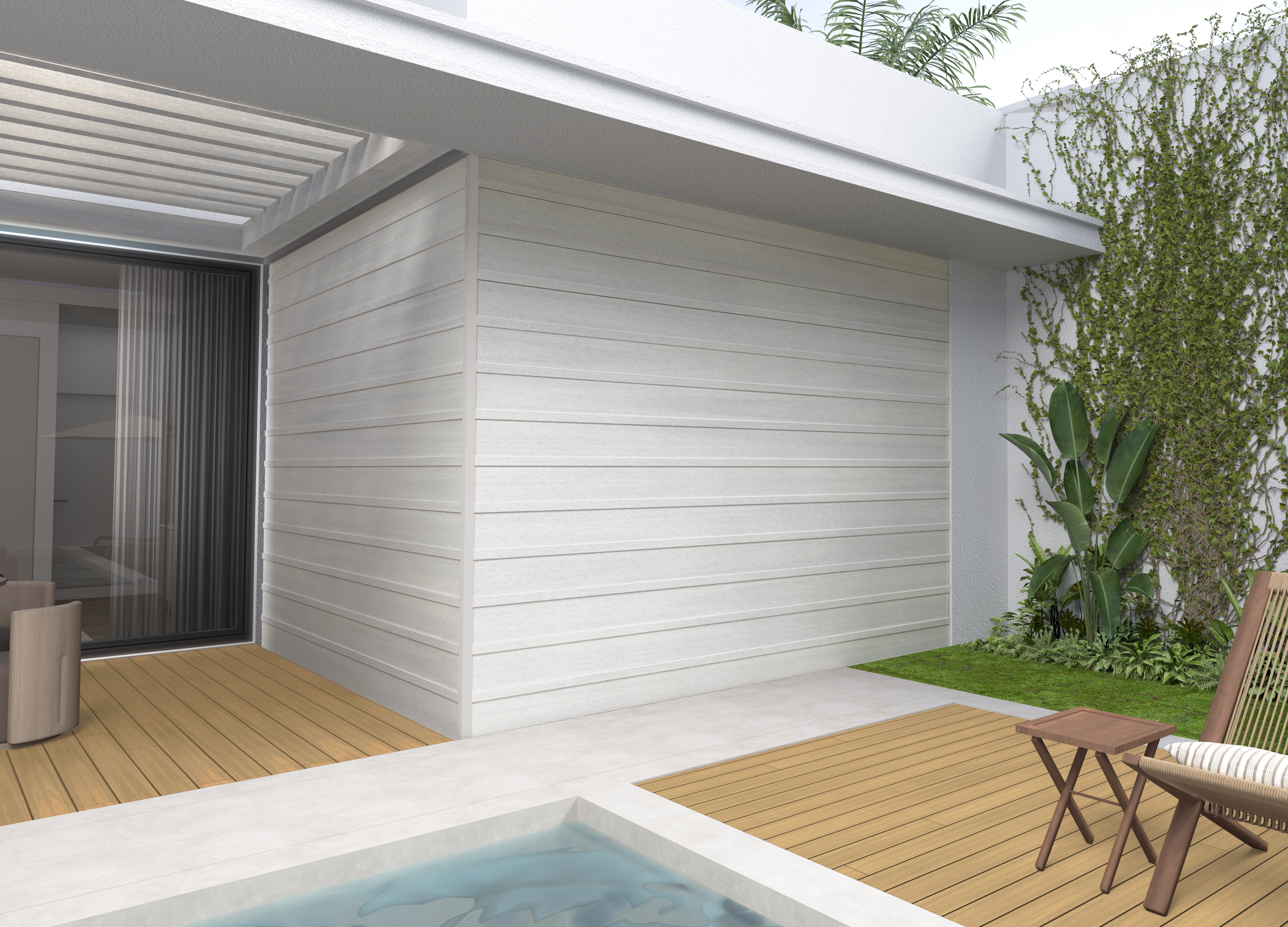

NewTechWood board and batten composite siding on a building exterior

Board & Batten Composite Siding

An elegant appearance with an eco-friendly nature.

25-Year
Residential limited warranty
4-Sided
UltraShield capping
95%
Recycled materials
Zero
Staining or sealing

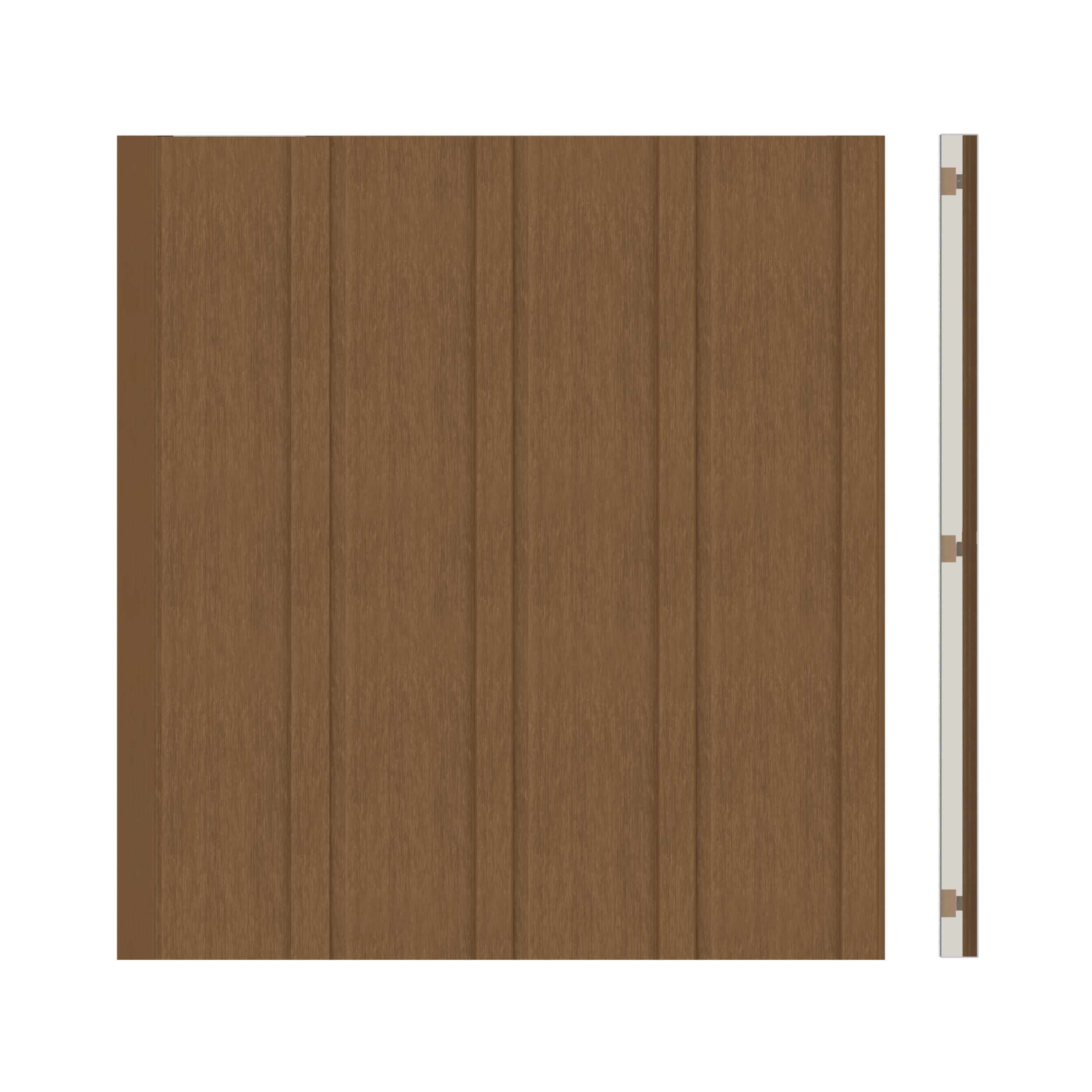

US86 - Board & Batten

US86 - Board & Batten

US86 - Board & Batten specifications
Width 10-15/16"
Depth 13/16"
Length 10' & 12'
Weight 25.92 lb (12' board), 21.6 lb (10' board)

Board reveal 7-3/4", batten reveal 2".

Profiles

Board & Batten composite siding brings the deep vertical rhythm of a modern farmhouse exterior to an UltraShield® capped composite cladding profile that never needs painting, caulking, or board replacement at the ten-year mark. Wide field boards alternate with raised vertical battens to create the deliberate shadow-line detail that defines the board-and-batten facade language — modern farmhouse, agricultural conversion, accessory dwelling unit, coastal residential — all carried on the same UltraShield rain-screen cladding platform as our All Weather and European siding lines. The vertical install dictates a particular trim language at openings and corners, and we supply matched aluminum siding trims for both, so the finished facade reads as carefully detailed architecture rather than a do-it-yourself attempt. 25-year warranty, three UltraShield colors, and zero-maintenance ownership.

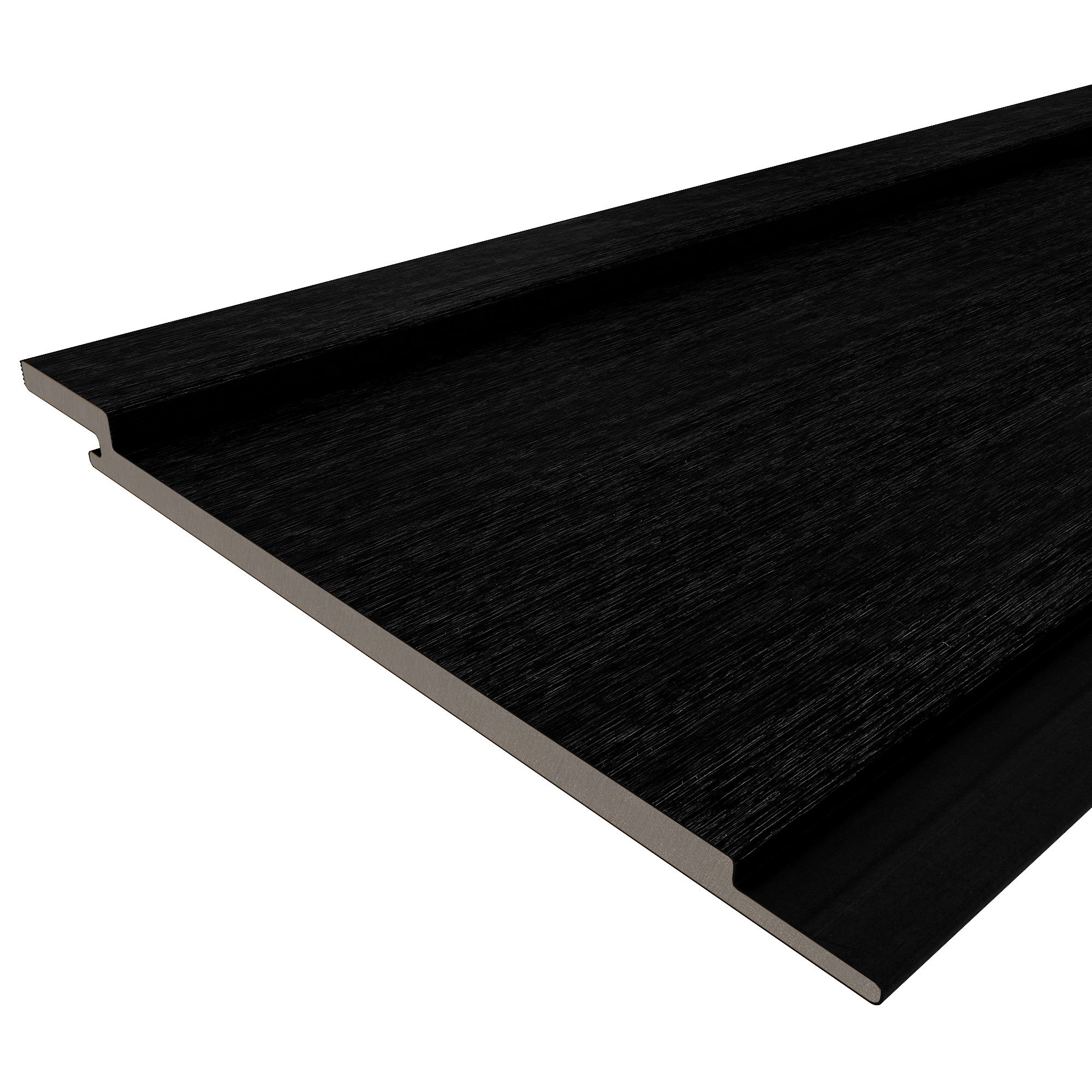

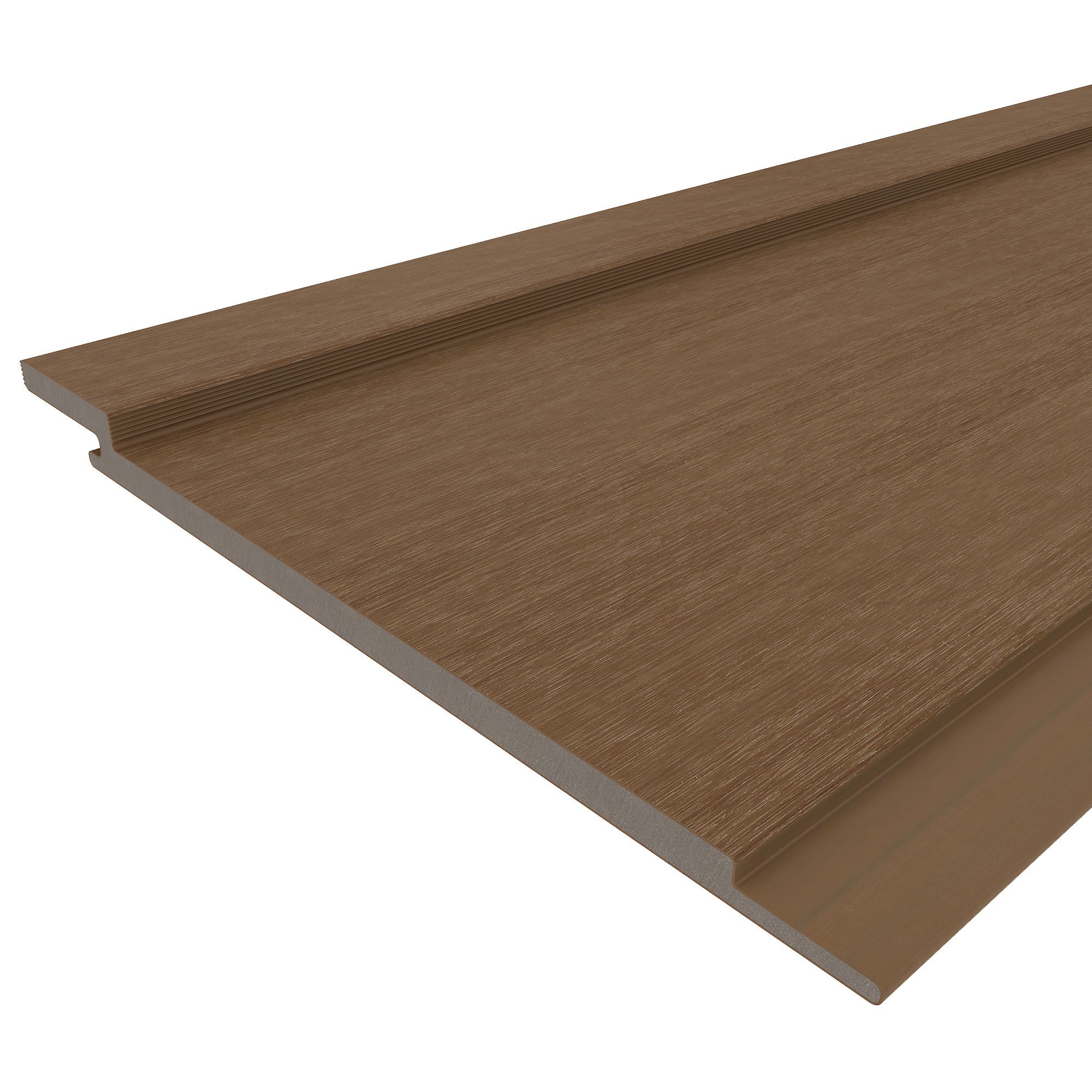

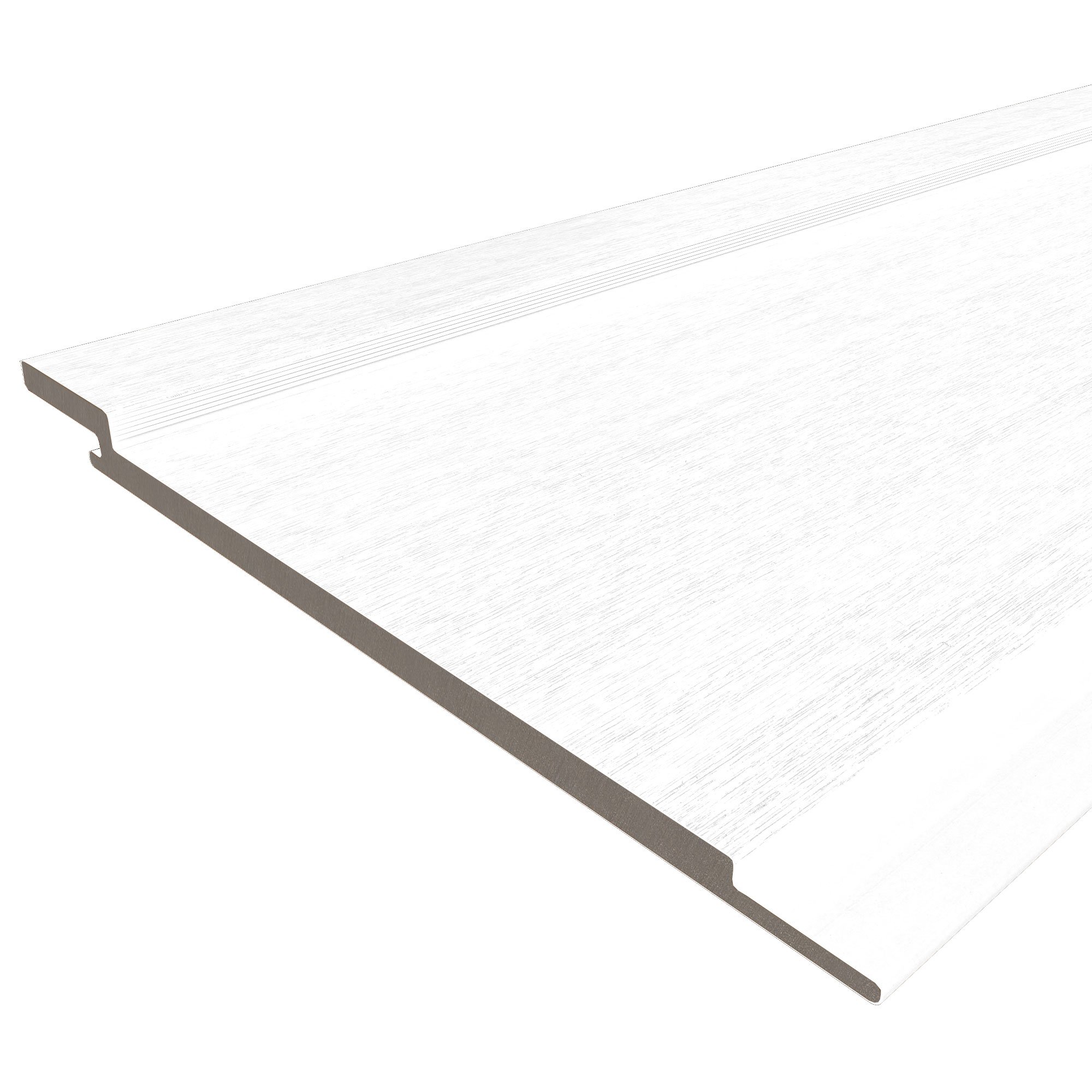

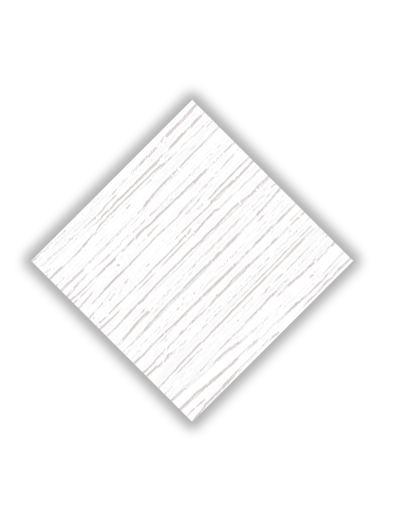

Colors

Our UltraShield® color range spans natural wood tones and contemporary grays, each finished with the same fade- and stain-resistant cap. Colors shown are representative — order a physical sample to confirm the exact tone and grain before you buy.

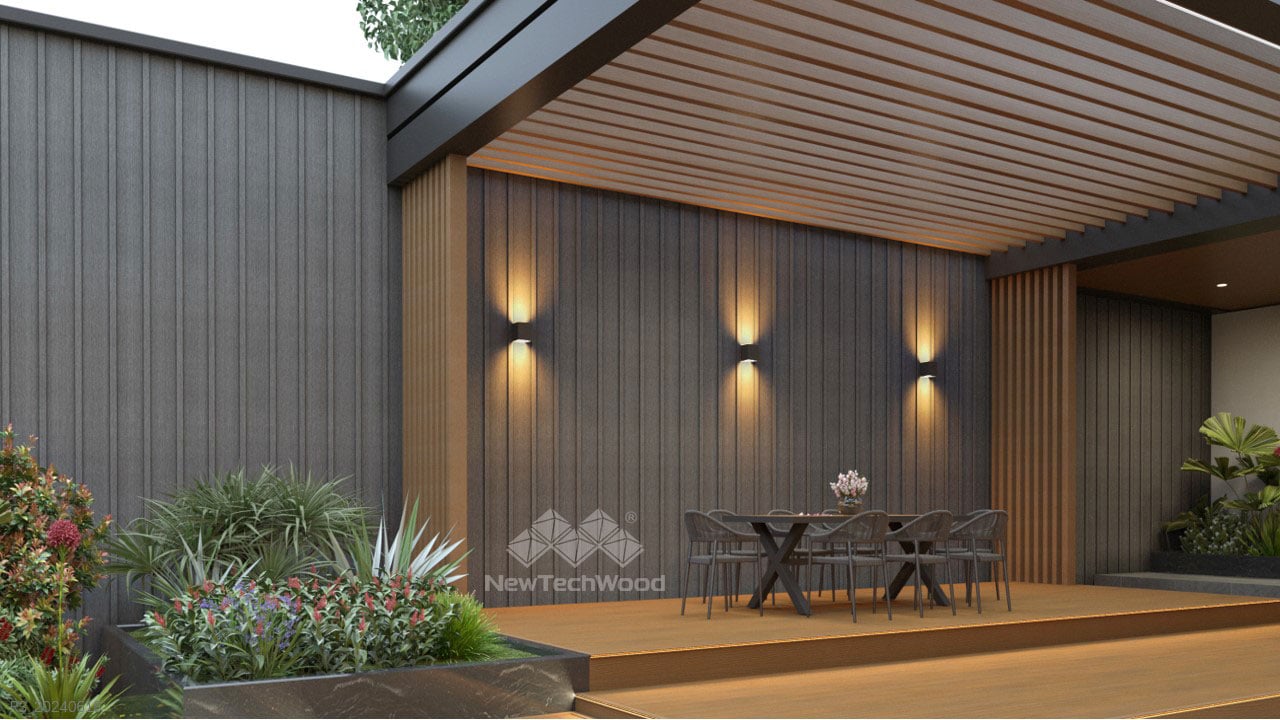

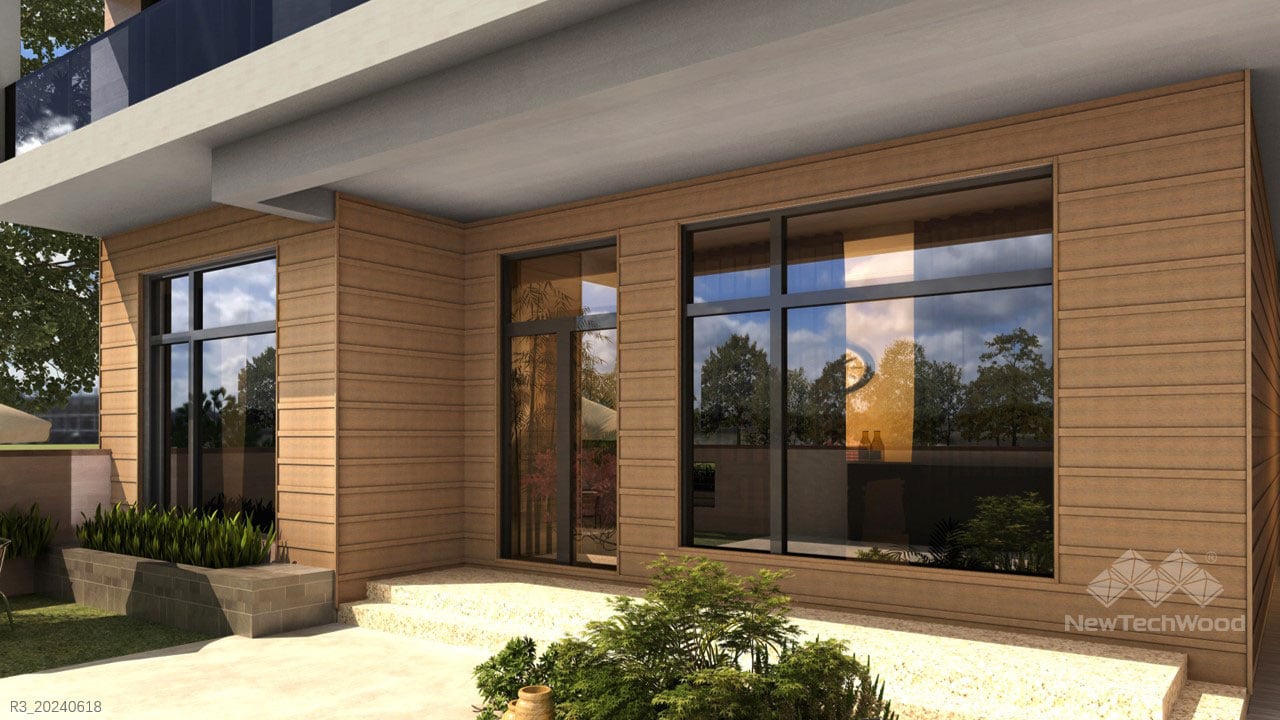

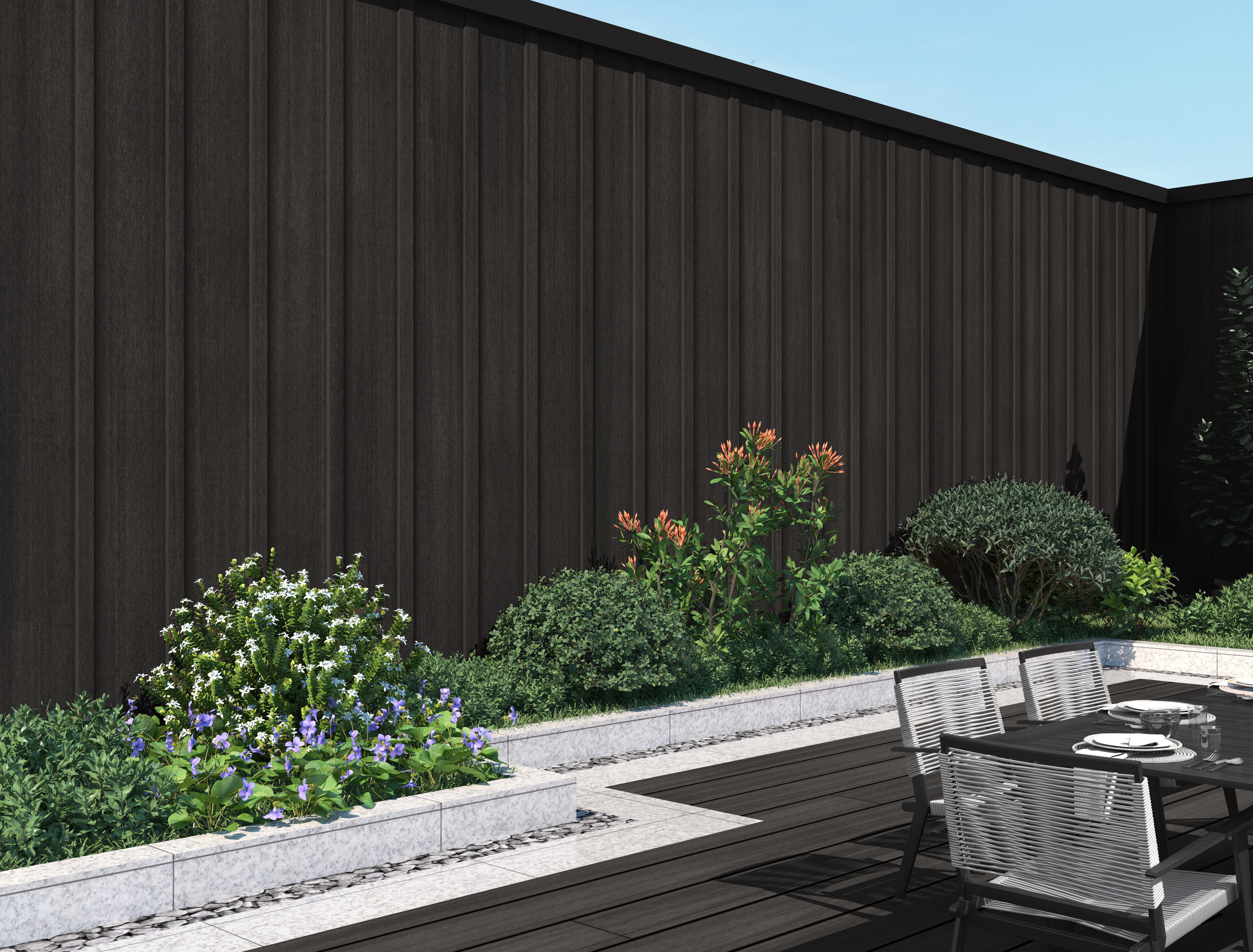

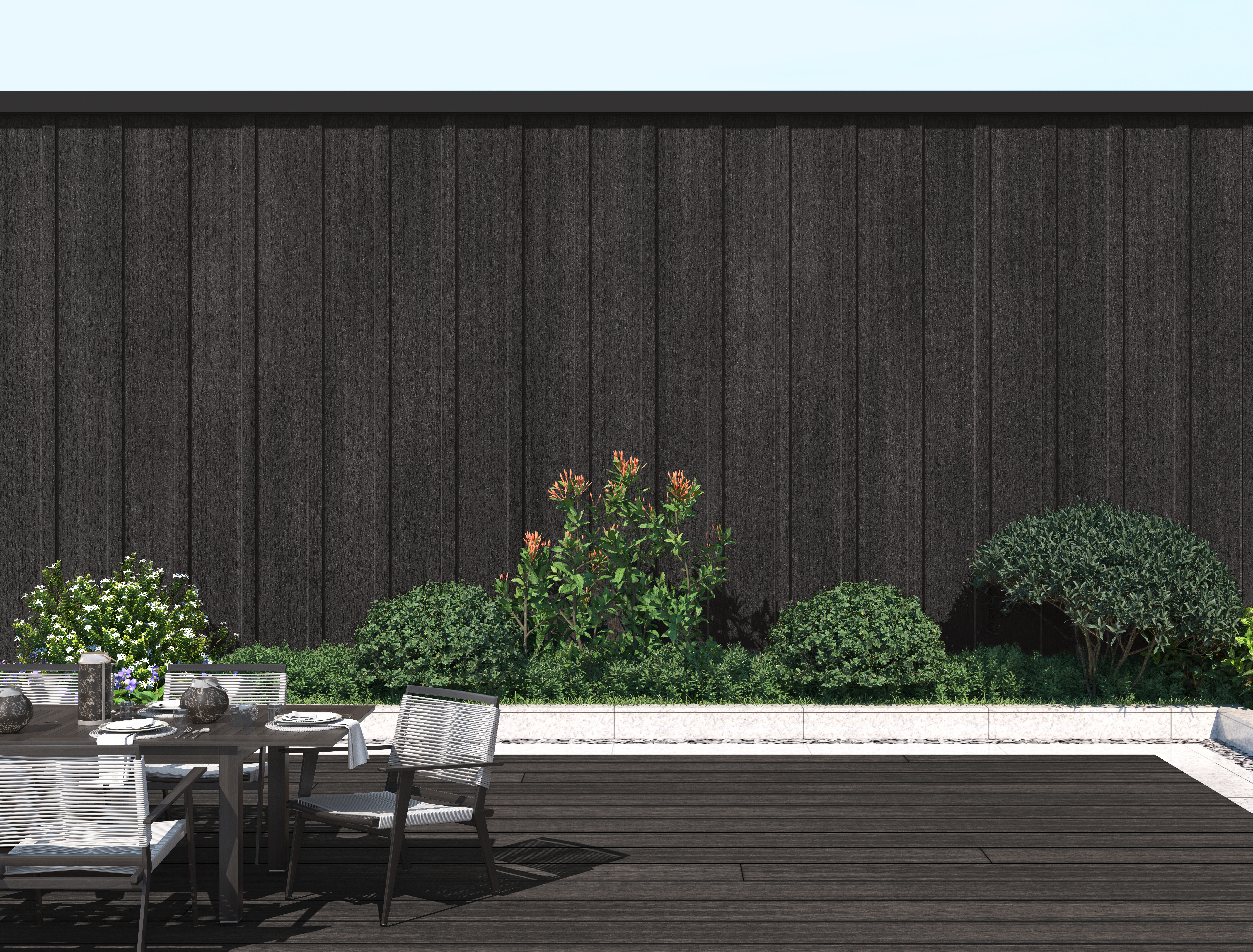

Gallery

See It In Action

All videos
Video: Rain Screen/Cladding/Siding Comparison Video Play video

Composite Siding Rain Screen/Cladding/Siding Comparison Video

More to watch

Trims & Accessories

Board & Batten is finished in aluminum rather than composite. Two trim sets are involved, and which one goes where depends on how the profile is run — the notes below each set say which.

1/2″ Aluminum Trims

Installed vertically, these go on the horizontal portions, with the batten removed.

  • F-Trim CA155-AA154

    F-Trim CA155-AA154

    F-Trim CA155-AA154 specifications
    Size 2″ × 1-13/16″ (50.8 × 46 mm)
    Weight 0.66 lb/ft

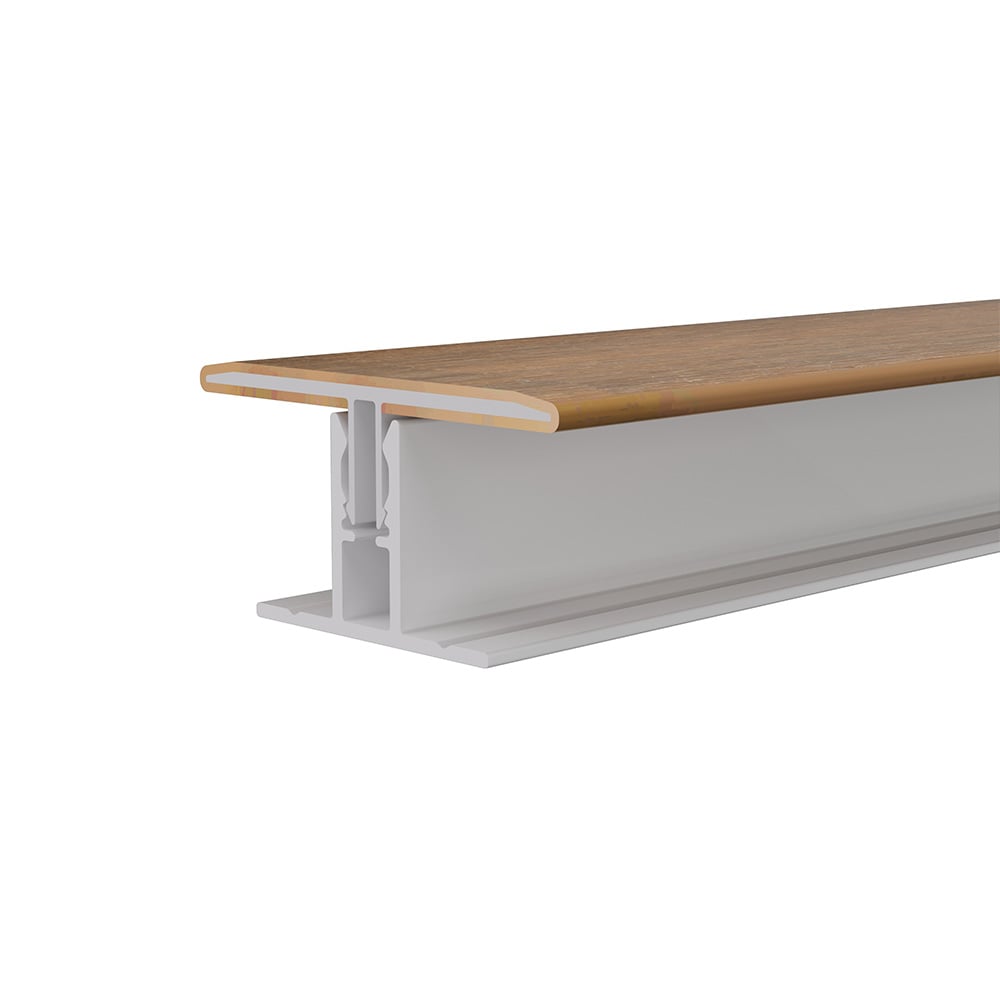

  • H-Trim CA162-AA45

    H-Trim CA162-AA45

    H-Trim CA162-AA45 specifications
    Size 1″ × 2-3/16″ (25.4 × 55.6 mm)
    Weight 0.48 lb/ft
  • Outside Corner Trim CA161-AA159

    Outside Corner Trim CA161-AA159

    Outside Corner Trim CA161-AA159 specifications
    Size 2-3/16″ × 3-9/16″ (55.6 × 90.5 mm)
    Weight 0.92 lb/ft
  • Inside Corner Trim CA50-AA46

    Inside Corner Trim CA50-AA46

    Inside Corner Trim CA50-AA46 specifications
    Size 2-5/8″ × 2-11/16″ (66.7 × 68.3 mm)
    Weight 0.95 lb/ft
  • Perforated Starting Trim CA42

    Perforated Starting Trim CA42

    Perforated Starting Trim CA42 specifications
    Size 1″ × 1-5/8″ (25.4 × 41.3 mm)
    Weight 0.32 lb/ft

1″ Aluminum Trims

Installed vertically, these go on the top and bottom portions.

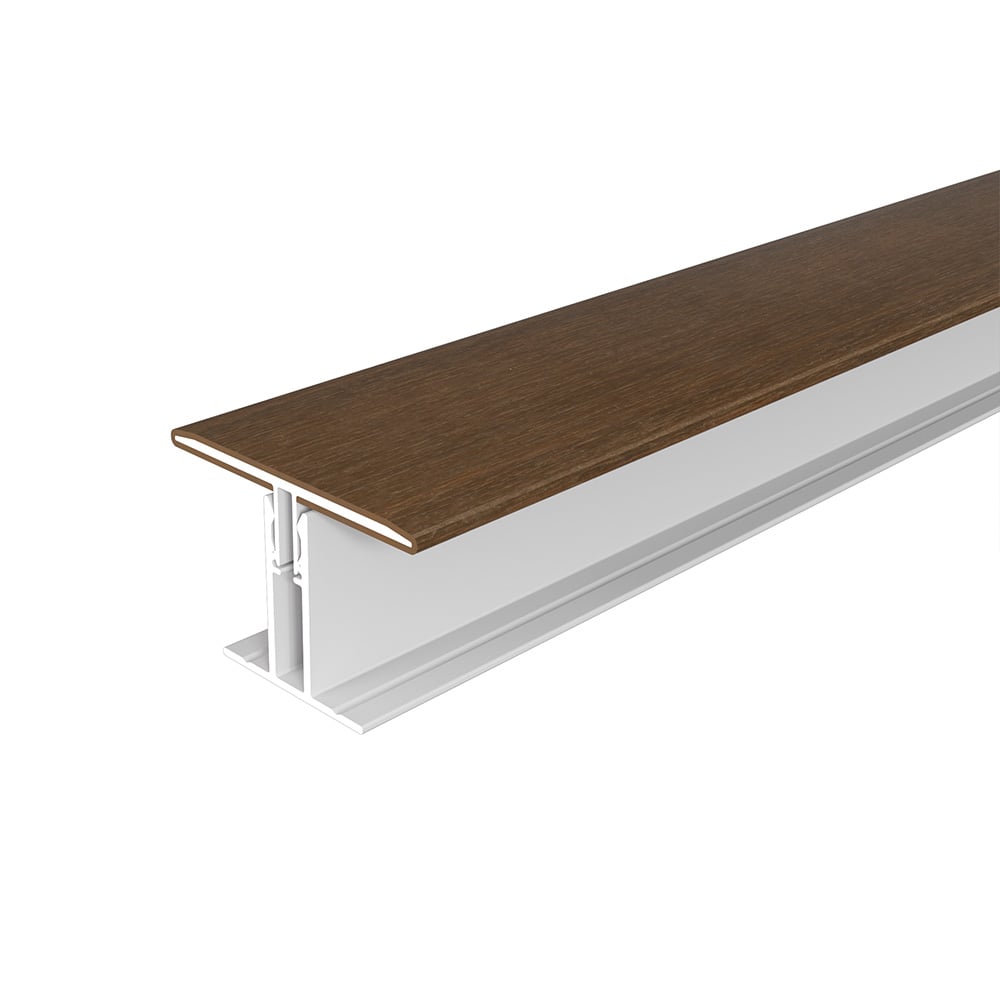

  • H-Trim CA162-AA60

    H-Trim CA162-AA60

    H-Trim CA162-AA60 specifications
    Size 1-1/2″ × 2-3/16″ (38.1 × 55.6 mm)
    Weight 0.55 lb/ft
  • F-Trim CA156-AA154

    F-Trim CA156-AA154

    F-Trim CA156-AA154 specifications
    Size 2″ × 2-5/16″ (50.8 × 58.7 mm)
    Weight 0.8 lb/ft
  • Inside Corner Trim CA50-AA61

    Inside Corner Trim CA50-AA61

    Inside Corner Trim CA50-AA61 specifications
    Size 3-1/4″ × 3-3/16″ (82.6 × 81 mm)
    Weight 1.16 lb/ft

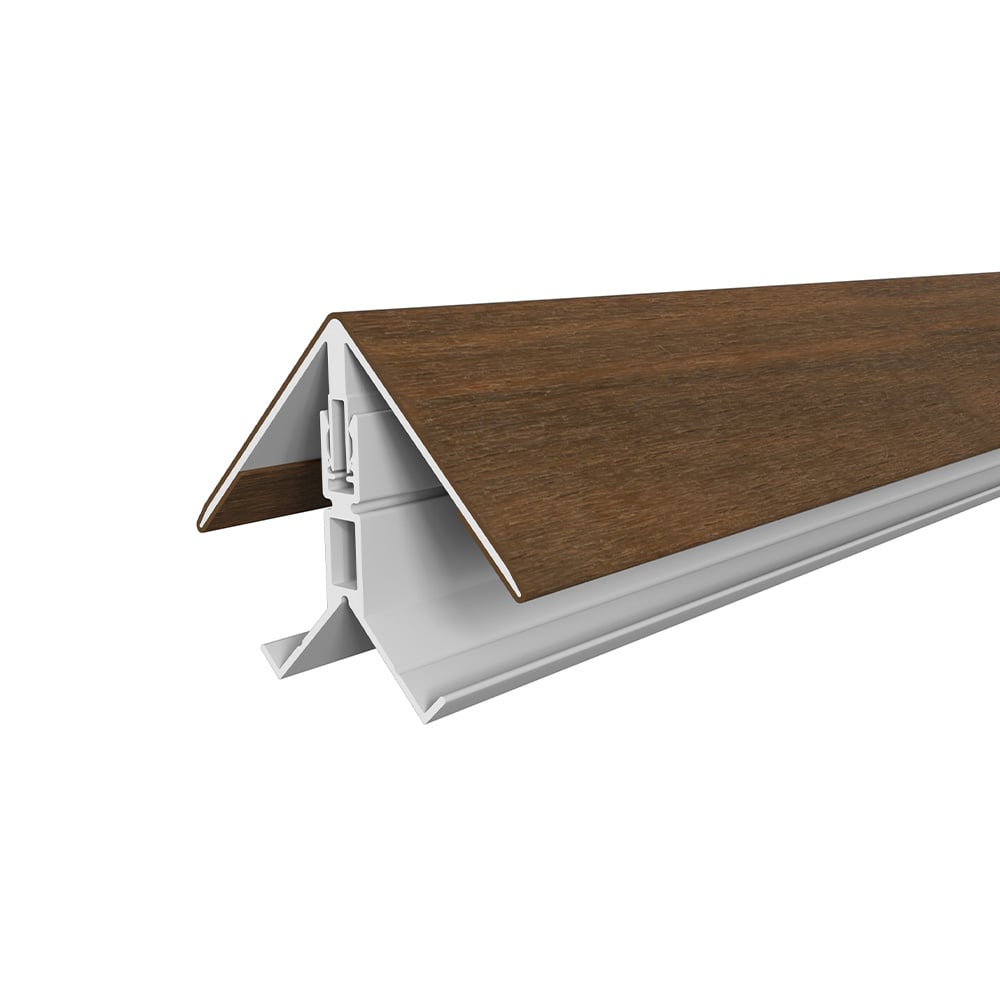

  • Outside Corner Trim CA161-AA160

    Outside Corner Trim CA161-AA160

    Outside Corner Trim CA161-AA160 specifications
    Size 2-7/8″ × 3-9/16″ (73 × 90.5 mm)
    Weight 1.08 lb/ft
  • Perforated Starting Trim CA43

    Perforated Starting Trim CA43

    Perforated Starting Trim CA43 specifications
    Size 1-1/2″ × 1-5/8″ (38.1 × 41.3 mm)
    Weight 0.37 lb/ft

Universal Aluminum Trims

Used with either set.

  • Flashing CA41

    Flashing CA41

    Flashing CA41 specifications
    Size 3-3/16″ × 3-3/16″ (81 × 81 mm)
    Weight 0.58 lb/ft
    Window head, window sill and butt-joint flashing.

Hardware

  • Siding Clips AW08

    Siding Clips AW08

    Siding Clips AW08 specifications
    Material Aluminum
    Size 1-1/8″ × 9/16″ × 13/16″ (28 × 14.5 × 20 mm)
    Weight 1.06 lb/bag
    Fixed to the joists — carries the connection between each board.
    View product
  • Starter Strip AW02

    Starter Strip AW02

    Starter Strip AW02 specifications
    Material Aluminum
    Size 11/16″ × 9/16″ (15 × 14.5 mm)
    Weight 0.32 lb/piece
    Sets the first cladding board on the joist.
    View product
  • Rubber Stopper T-7

    Rubber Stopper T-7

    Rubber Stopper T-7 specifications
    Material Rubber
    Size ø11/16″ × H 5/16″ (ø18 × H8 mm)
    Weight 0.25 lb/bag
    Supports the board on the joist when fitting the last course.
    View product

Downloads

Product literature, installation guides and technical documents for Board & Batten.

Catalog

Installation Guide

  • Alusions Siding Trims Installation Guide
    PDF
  • Board and Batten Siding Vertical Installation Guide
    PDF

Spec Sheet

  • Board and Batten Siding (US86) Technical Sheet
    PDF

Warranty

The UltraShield® Difference

Engineered to outlast the elements.

Every NewTechWood board pairs a dense polyethylene-and-wood-fiber core with a 360° polymer cap, tested against stains, scratches, fade, and boiling water. The result: composite that looks like wood, behaves like a fortress, and stays beautiful for decades.
